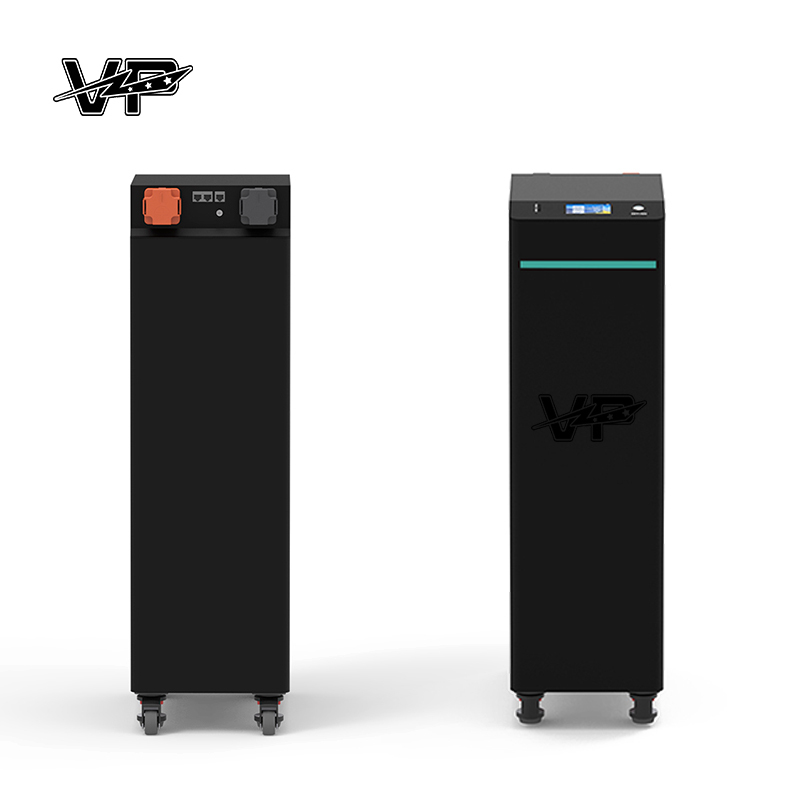

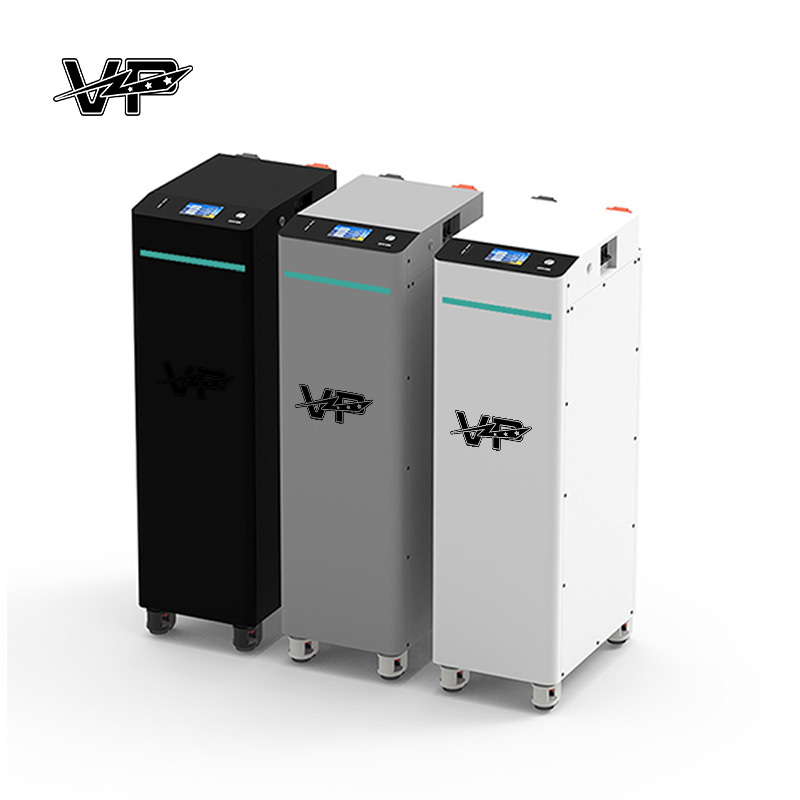

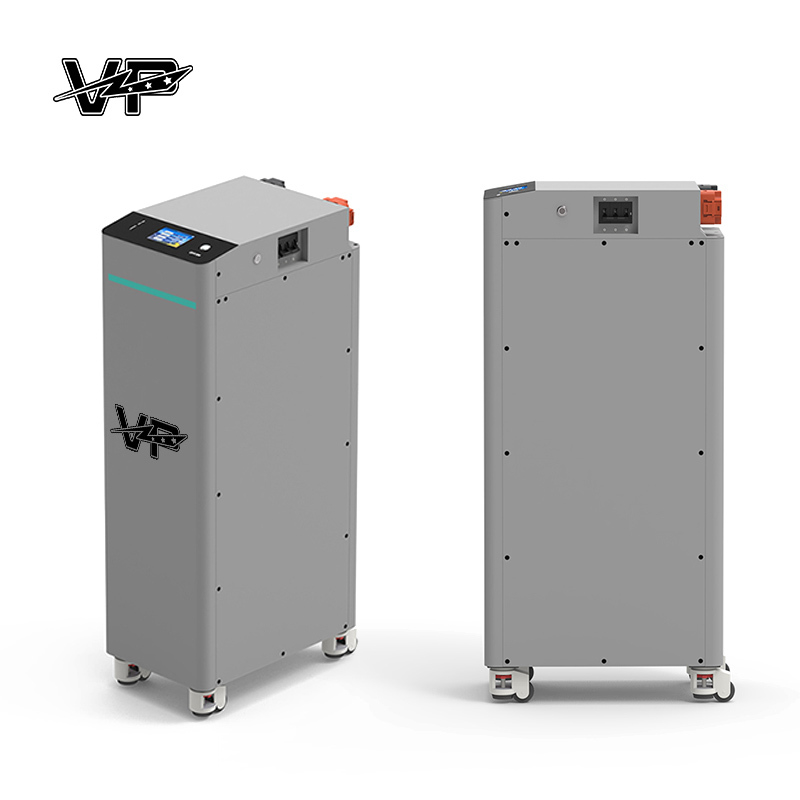

Floor Mounted DIY BOX 51.2V 280AH Home Energy Storage System
Product Attributes
| Attribute |
Value |
| Product Name |
51.2V Diy Kit Box Energy Storage System |
| Application |
Solar Energy Storage Systems/ Electric Power Systems |
| Battery Protection |
Intelligent BMS |
| Communication |
CAN BUS and RS485 |
| Features |
Floor Mounted |
| Waterproof Grade |
IP20 |
Key Features
- Easy to Install and Use
- Cost-Effective Energy Solutions
- 8000-Cycle Lifespan
- Protective Class of IP20
- Supports Various Communication Ports
Our customer service provides 24-hour service, 2-hour quick response, full inspection of outgoing goods, door-to-door logistics delivery, fast delivery speed, and rea-time tracking to ensure the safety of goods.
Technical Specifications
| Product Performance |
VP-280 |
| Standard voltage |
51.2V |
| Rated Capacity |
280AH |
| Operating Voltage |
42V-58.4V |
| Standard Charging Current |
100A / 200A |
| Maximum Charge / Discharge Current |
200A |
| Operating Temperating Range |
0-40℃(Charge) -20-40℃(Discharge) |
| Storage Temperature |
-10℃-35℃(1Month) 25±2℃(3Month) 65%±20%RH |
| Cycle Life |
8000 Cycles @25℃ 50A Charge and Discharge Current 70%Standard Capacity 80%DOD |
| Communication |
CAN & RS485 |
| Waterproof Grade |
IP20 |
| Humidity Range |
5~95% |
| Net Size |
898.5*415*260mm |
| Net Weight |
120±3KG |
Product Description
Our DIY energy storage kit uses high-quality lithium batteries, which can achieve 8,000 cycles at 70% discharge depth. Integrated intelligent battery management system (BMS), equipped with RS485/CAN bus interface, provides millisecond-level overcharge/over-discharge protection (operating temperature range: 0-40°C (charging) / -20-40°C (discharging). 200A continuous discharge capacity combined with pure sine wave output can perfectly drive high-power equipment such as HVAC. IP20 protection grade housing ensures stable operation in 5%-95% humidity environment. Passed CE / IEC / UN38.3 / MSDS international certification to meet global deployment needs.
Guangzhou Victory Technology Co., Ltd. have a 5000 square meter production base, a mature production team, and 20+ high-precision battery production lines. We provide OEM customization services and have become the trusted choice of many customers.
Usage Notices
- Maintain ambient temperature: 0-40°C (charging), -20-40°C (discharging).
- Immediately cut off the AC / DC switch when abnormal heating occurs.
- Do not flush the equipment with water under any circumstances.
- Maintain 20-80% SoC for cycle life preservation.
- Recommended to conduct regular inspections and check for loose connections/rust every 6 months.
Applications
Target applications include autonomous home energy systems, decentralized power installations, vital equipment backup, medical power supplies, and mobile work environment power solutions.
VP batteries are CE, ROHS, TUV, ISO, FCC approved and MSDS, UN38.3 for lithium battery, meeting various certification requirements for different countries.
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A1: We are manufacturer.
Q2: Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A2: Yes, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q3: Why should you choose us?
A3: With 12 international production bases; professional sales team and R&D team; qualified products and competitive prices; timely delivery; sincere service.
Q4: Is the product original?
A4: Yes,it is indeed 100% original and authentic, we never sell fake battery, honest is the best policy.
Q5: How do we control the quality?
A5: We will make samples before mass production and test them. After sample approved, we will begin mass production. Doing 100% inspection during production and then do random inspection before.
If you have any other questions, please feel free to contact us. Welcome your inquiry.
