Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
CE ROHS MSDS UN38.3 KB
Model Number:
CR1025

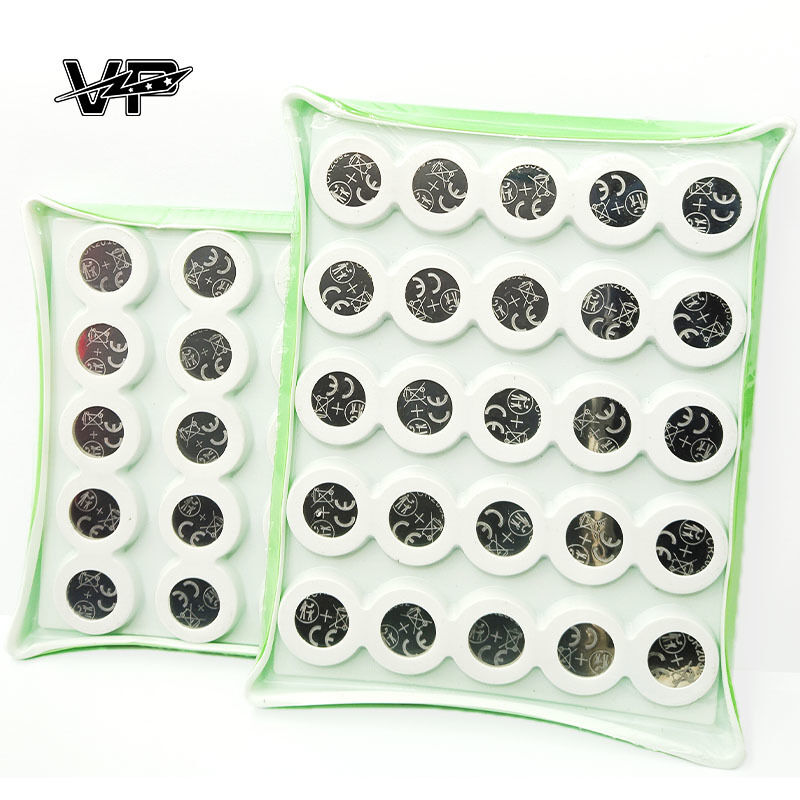

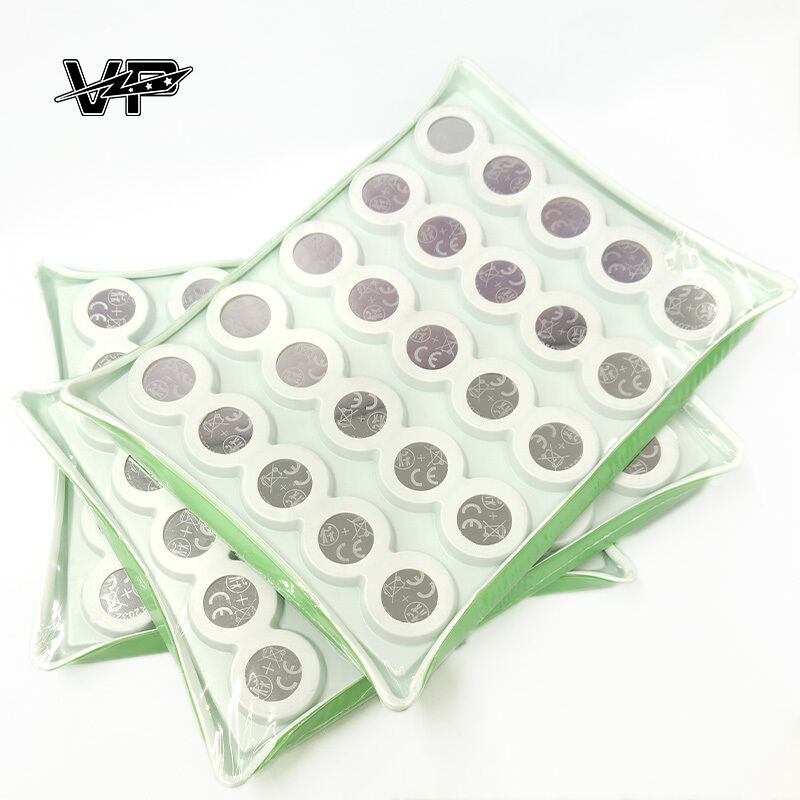

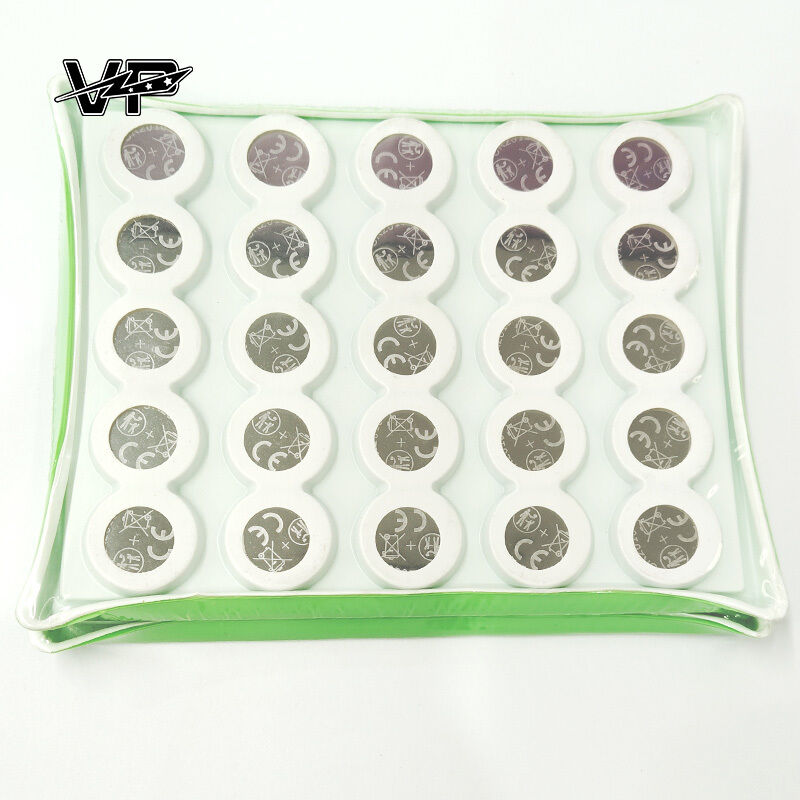

VP Button 33mHA 3V CR 1025 Lithium Battery for Remote Control Applications
Features
Company Profile:
Choose VP for high productive capacity and stable, affordable quality. We operate as a dedicated, high-tech battery enterprise, ensuring reliable supply and consistent performance for all your battery needs. Our focus on manufacturing excellence makes us your ideal partner.
Description:
A non-rechargeable 3-volt lithium manganese dioxide ( Li-MnO2 ) coin cell, the CR1025 provides high energy density and stable voltage. Unlike traditional zinc-carbon batteries, its chemical system uses lithium as the negative active material and MnO2 as the positive, delivering a higher 3V output. It offers excellent performance, leakage resistance, and a long life, making it a reliable power source for a wide range of precision devices.
Specifications:
| Model Number | IEC Design Voltage (V) | Nominal Capacity (mAH) | Diameter (mm) | Height (mm) | Average Weight (g) |
|---|---|---|---|---|---|
| CR927 | 3 | 33 | 9.5 | 2.7 | 0.6 |
| CR1025 | 3 | 33 | 10 | 2.5 | 0.6 |
| CR1130 | 3 | 60 | 11.5 | 3 | 0.9 |
| CR1220 | 3 | 45 | 12.5 | 2 | 0.8 |
| CR1216 | 3 | 28 | 12.5 | 1.6 | 0.7 |
| CR1225 | 3 | 55 | 12.5 | 2.5 | 1 |
| CR1530 | 3 | 100 | 15 | 3 | 1.5 |
| CR1616 | 3 | 55 | 16 | 1.6 | 1.2 |
| CR1620 | 3 | 75 | 16 | 2 | 1.3 |
| CR1625 | 3 | 95 | 16 | 2.5 | 1.4 |
| CR1632 | 3 | 132 | 16 | 3.2 | 1.6 |
| CR2016 | 3 | 85 | 20 | 1.6 | 1.8 |
| CR2025 | 3 | 155 | 20 | 2.5 | 2.4 |
| CR2032 | 3 | 220 | 20 | 3.2 | 2.9 |
| CR2320 | 3 | 140 | 23 | 2 | 3 |
| CR2330 | 3 | 256 | 23 | 3 | 4 |
| CR2354 | 3 | 550 | 23 | 5.4 | 6 |
| CR2430 | 3 | 295 | 24.5 | 3 | 4.5 |
| CR2450 | 3 | 570 | 24.5 | 5 | 6.2 |
| CR2477 | 3 | 1250 | 24.5 | 7.7 | 8.5 |
| CR3032 | 3 | 560 | 30 | 3.2 | 8 |
For slim profiles and lightweight design, choose from vp flat cells like CR2016, CR2025, and CR1216. The popular CR2430 balances size and capacity. For slightly more power in a small footprint, the CR1620 and CR1220 are excellent choices.
Widely Applications:
This long-life battery is a trusted component in critical applications where consistent power is essential. It is commonly used to power security tokens, specialized medical devices like thermometers, and other electronics where a dependable, maintenance-free energy source is required for extended periods.
Notices:
FAQ
Q: Do you have inspection before delivery?
A: Yes. We have specialized OC team to do randome and 100% inspectionbefore delivery.
Q:How to proceed an order for product?
A:Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: Can Lithium Button batteries be charged?
A: Not at all. when charging, a large amount of gas will be produced inside the battery, which will increase the battery pressure and result in battery explosion or leakage.
Q: What is the packaging detail?
A: Most product would be packed in carton box, and the packaging can be customized upon customer's request.
Q:Is this product safe?
A:Anti-short circuit, anti-scalding, explosion-proof, and environmentally friendly.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
