Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
CE ROHS MSDS UN38.3 KB
Model Number:
CR2477

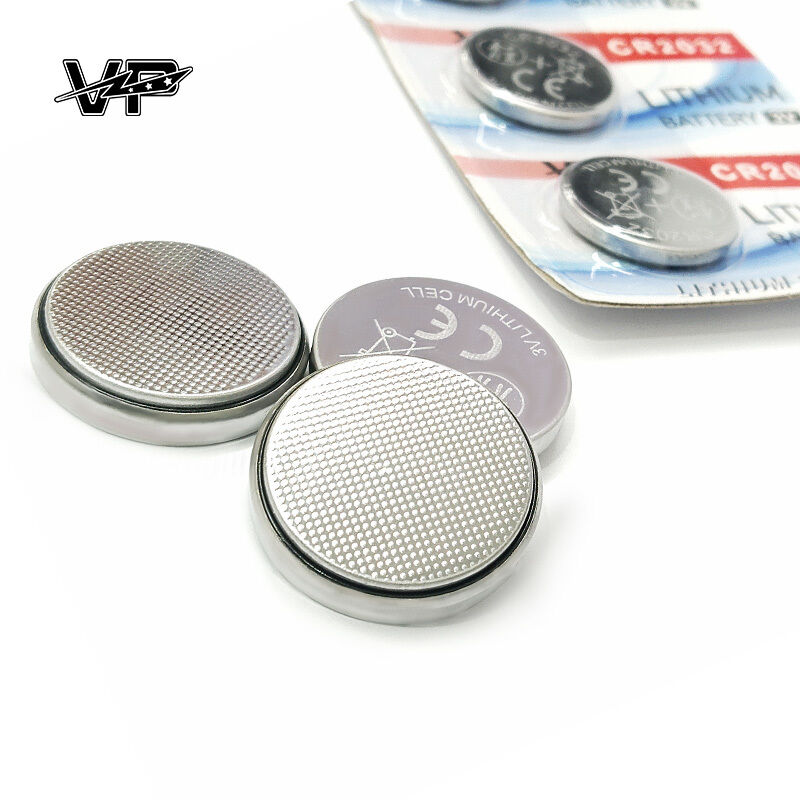

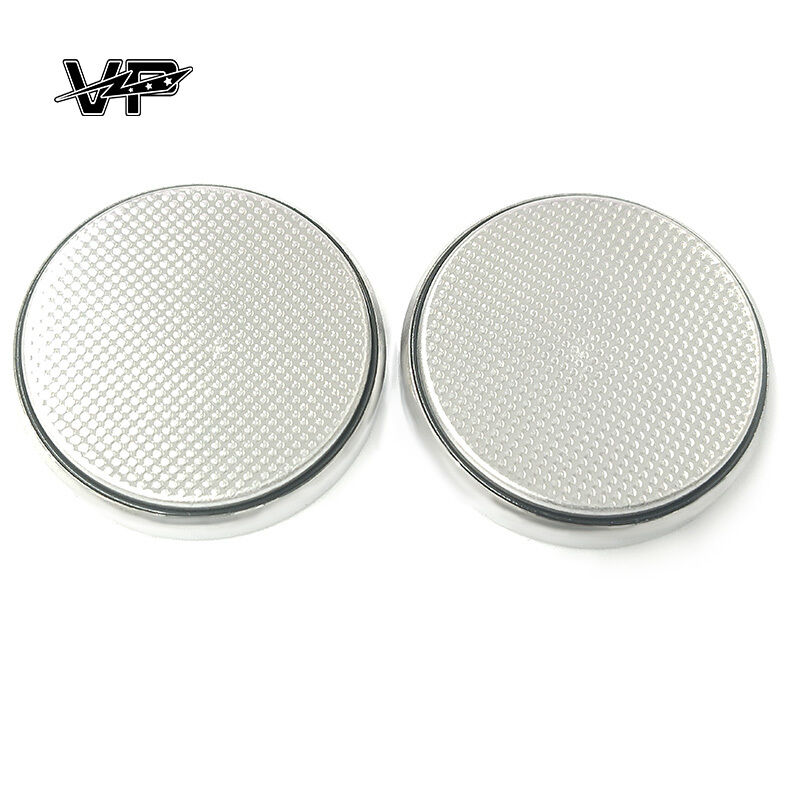

High Energy Density 1250mHA VP CR2477 Lithium Battery Button Cell
Customized Service:
Guangzhou Victory Technology solve problems quickly. From concept to delivery, our professional team ensures efficient communication and support. We welcome your customized package requirements to accommodate specific market needs.
Performance Characteristics:
Description:
The CR2477 is one of the highest capacity models of lithium coin cells. Designed for maximum longevity, the CR2477 offers an exceptional shelf life (up to 10 years) with ultra-low self-discharge. This durable, mercury-free cell provides long-lasting power with stable voltage output.
Specifications:
| Model Number | IEC Design Voltage (V) | Nominal Capacity (mAH) | Diameter (mm) | Height (mm) | Average Weight (g) |
|---|---|---|---|---|---|
| CR927 |
3
|
33
|
9.5
|
2.7
|
0.6
|
| CR1025 | 3 | 33 | 10 | 2.5 | 0.6 |
| CR1130 | 3 | 60 | 11.5 | 3 | 0.9 |
| CR1220 | 3 | 45 | 12.5 | 2 | 0.8 |
| CR1216 | 3 | 28 | 12.5 | 1.6 | 0.7 |
| CR1225 | 3 | 55 | 12.5 | 2.5 | 1 |
| CR1530 | 3 | 100 | 15 | 3 | 1.5 |
| CR1616 | 3 | 55 | 16 | 1.6 | 1.2 |
| CR1620 | 3 | 75 | 16 | 2 | 1.3 |
| CR1625 | 3 | 95 | 16 | 2.5 | 1.4 |
| CR1632 | 3 | 132 | 16 | 3.2 | 1.6 |
| CR2016 | 3 | 85 | 20 | 1.6 | 1.8 |
| CR2025 | 3 | 155 | 20 | 2.5 | 2.4 |
| CR2032 | 3 | 220 | 20 | 3.2 | 2.9 |
| CR2320 | 3 | 140 | 23 | 2 | 3 |
| CR2330 | 3 | 256 | 23 | 3 | 4 |
| CR2354 | 3 | 550 | 23 | 5.4 | 6 |
| CR2430 | 3 | 295 | 24.5 | 3 | 4.5 |
| CR2450 | 3 | 570 | 24.5 | 5 | 6.2 |
| CR2477 | 3 | 1250 | 24.5 | 7.7 | 8.5 |
| CR3032 | 3 | 560 | 30 | 3.2 | 8 |
Power your connected life and convenience. These batteries are essential for small remote controls like car key fobs and garage door openers. Furthermore, they enable various wireless sensors for smart homes, such as door/window contact sensors, and Bluetooth trackers, keeping your assets secure and your home automated.
More Choices:

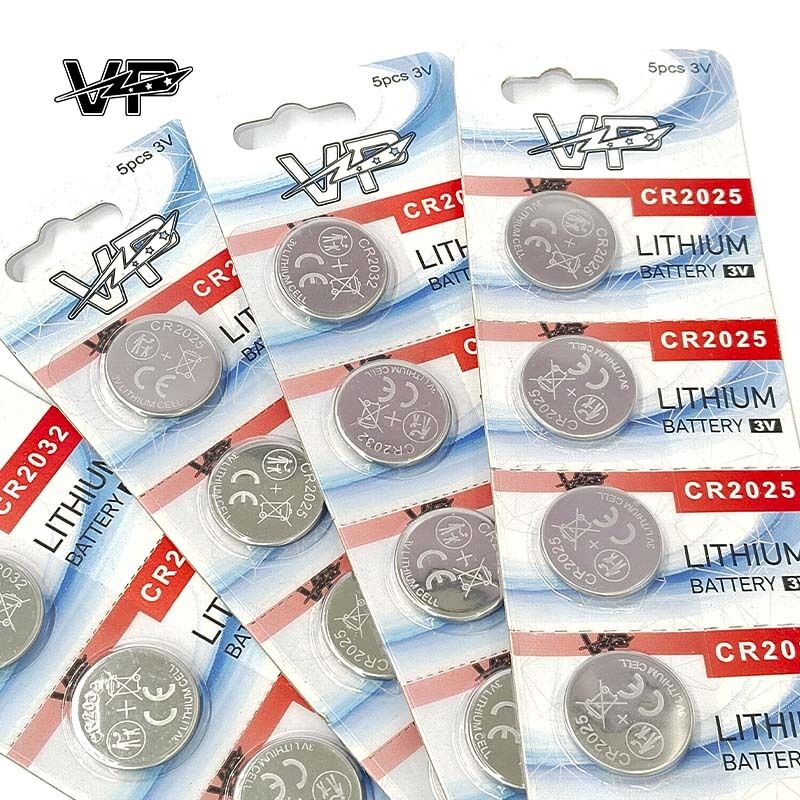

All our CR batteries, including popular CR2032 and CR2430, as well as CR2450, CR2016, CR2025, and CR1620, are made with environmentally friendly materials, free from mercury, lead, and cadmium.
Notices:
FAQ
Q: Do you have inspection before delivery?
A: Yes. We have specialized OC team to do randome and 100% inspectionbefore delivery.
Q:How to proceed an order for product?
A:Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q: Can Lithium Button batteries be charged?
A: Not at all. when charging, a large amount of gas will be produced inside the battery, which will increase the battery pressure and result in battery explosion or leakage.
Q: What is the packaging detail?
A: Most product would be packed in carton box, and the packaging can be customized upon customer's request.
Q:Is this product safe?
A:Anti-short circuit, anti-scalding, explosion-proof, and environmentally friendly.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
