Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
UL1642 UN38.3 MSDS CE ISO RoHS IEC
Model Number:
12V-100AH
Why Choose Partner With VP Batteries:
Guangzhou Victory Technology – your battery partner for tailored power. Our R&D team delivers highly customized designs and flexible OEM/ODM services. Need special voltage, size, or packaging? We make it happen. Visit our factory to see professional operations. Let’s build your solution.
| Product Performance | 12V-100AH |
|---|---|
| Standard Voltage | 12.8V |
| Rated Capacity | 100AH |
| Operating Voltage | 10.8V-14.6V |
| Standard Charging Current | 50A |
| Maximum Charge / Discharge Current | 100A |
| Operating Temperating Range | 0-40℃(Charge) -20-40℃(Discharge) |
| Storage Temperature | -10℃-35℃(1Month) 25±2℃(3Month) 65%±20%RH |
| Cycle Life | 6000 |
| Communication | Bluetooth |
| Waterproof Grade | IP54 |
| Humidity Range | 5~95% |
| Net Size | 260*168*210mm |
| Net Weight | 10±3KG |

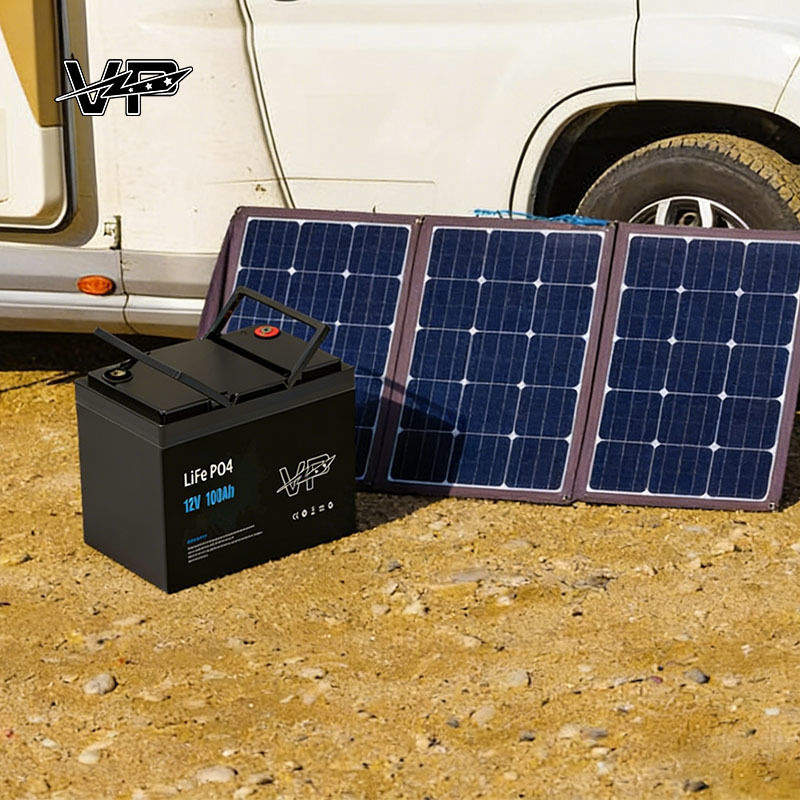

Power your golf carts, electric tools, and motive equipment reliably with LiFePO₄ batteries. Reduce downtime and maintenance costs for fleet operators, course managers, and tool rental businesses.
Basic Info.

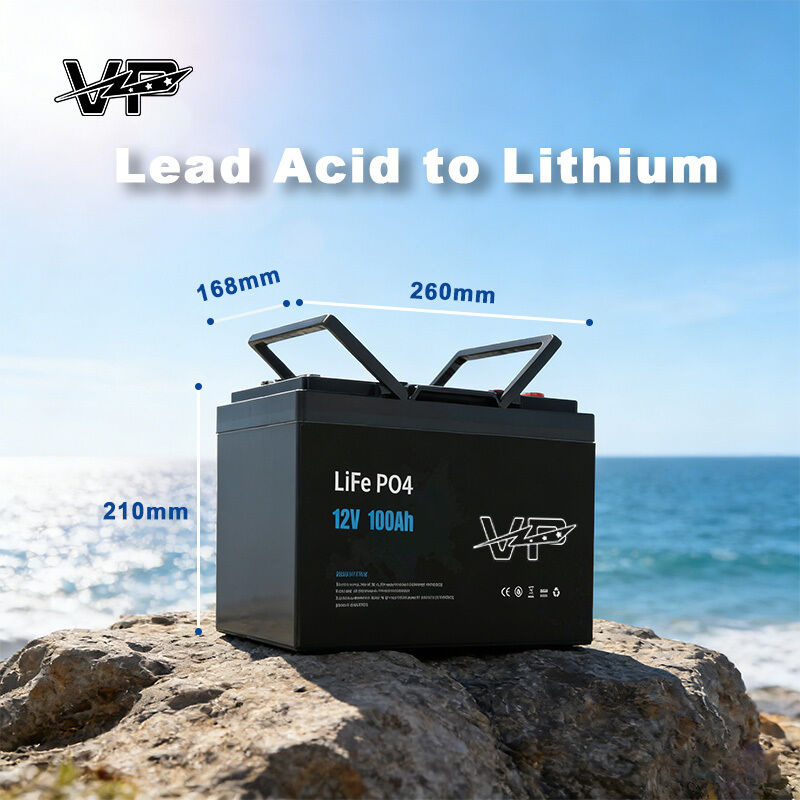

The VP 12.8V 100Ah Lithium Iron Phosphate (LiFePO4) battery features physical dimensions identical to those of common traditional lead-acid batteries (260 × 168 × 210 mm), enabling a "drop-in replacement" capability. This allows your equipment to minimize conversion costs when upgrading from lead-acid to lithium battery systems. Boasting a cycle life of 6,000 cycles, an IP54 protection rating, Bluetooth monitoring functionality, and a maximum charge/discharge current of up to 100A. Typically, this 100Ah battery pack is used as a base unit; through series and parallel connections, it can be flexibly configured as a modular power supply to support various systems operating at 24V, 48V, or even higher voltages.
More models are available for you to choose from: 12V-100AH (330*171*215), 12V-200AH, 12V-280AH, 12V-314AH, and 12V-628AH. These batteries are ideal for solar power plants, data centers, and industrial-grade UPS systems with extremely high energy density requirements.
Q: How many series or parallel connections can a 12.8V battery support to expand its capacity?
A: VP standard 12.8V LiFePO₄ battery supports up to 4 units in parallel (depending on BMS limits). More parallel connections increase total capacity (e.g., four 100Ah in parallel = 400Ah). For larger systems (e.g., above 4S4P), please contact our technical team for a custom high-voltage storage cabinet or battery packs with external communication.
Note: Before connecting in parallel, ensure that the voltage difference between the batteries is within 0.1V.
Q: Do your 12.8V lithium batteries have UN38.3 reports for sea freight?
A: Yes. All models carry complete UN38.3 reports and MSDS. As a professional battery supplier, we understand the importance of compliance for project timelines. Our batteries are also equipped with a full set of dangerous goods transport documents to ensure smooth global shipping by sea, air, and land.
Q: Can a 12.8V LiFePO4 battery replace a 12V 100Ah lead-acid battery?
A: Yes. 12.8V LiFePO4 batteries are designed as a drop-in replacement for 12V lead-acid batteries. They are highly compatible in terms of physical size, nominal voltage, and wiring methods, while offering longer life, lighter weight, and higher discharge efficiency.
Q: How does the battery work in extreme cold (below 0°C)? Does it offer a heating function?

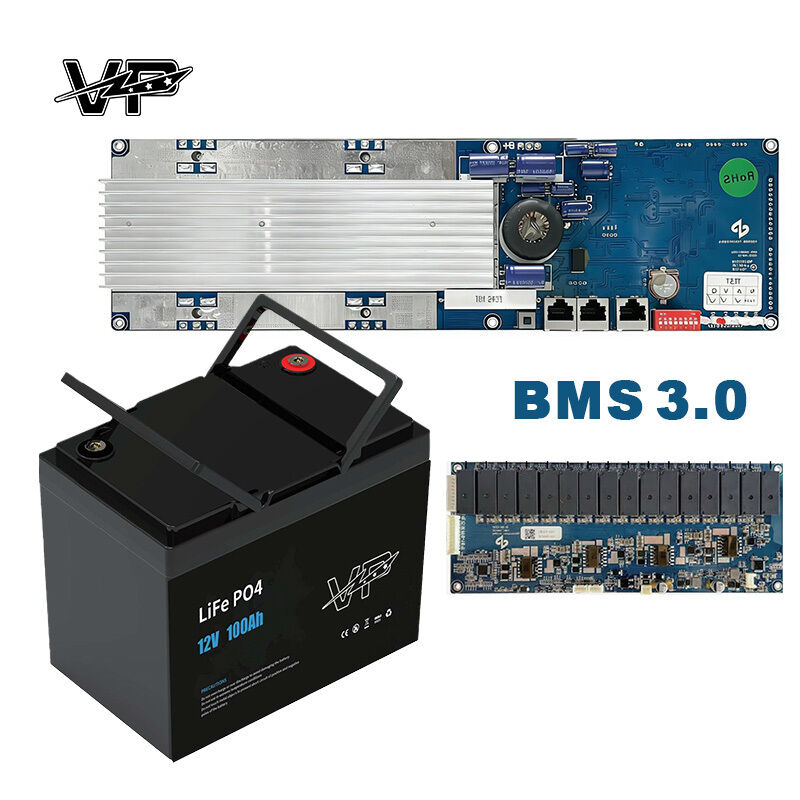

A: VP standard batteries feature a Smart BMS Low-Temperature Cut-off. However, we offer an optional Self-Heating version that uses the charger's current to heat the cells to above 5°C before initiating the charge, ensuring reliable operation even at -30°C.
Q: Why should you buy from us not from other suppliers?
A: Guangzhou Victory Technology Co., Ltd have extensive experience in battery manufacturing, specializing on the research, development, production, and sales of alkaline batteries, carbon batteries, energy storage battery systems, lithium-ion rechargeable batteries, and related charging equipment. We have established deep partnerships with numerous large enterprises.
