Place of Origin:
China
Brand Name:
VP
Certification:
RoHS CE IEC
Model Number:
LR41 AG3

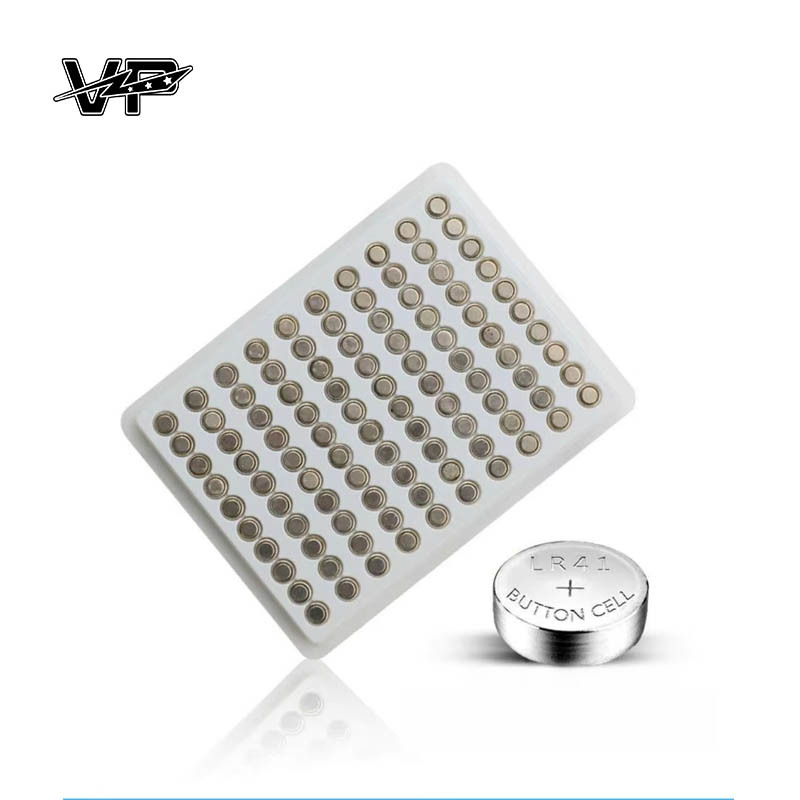

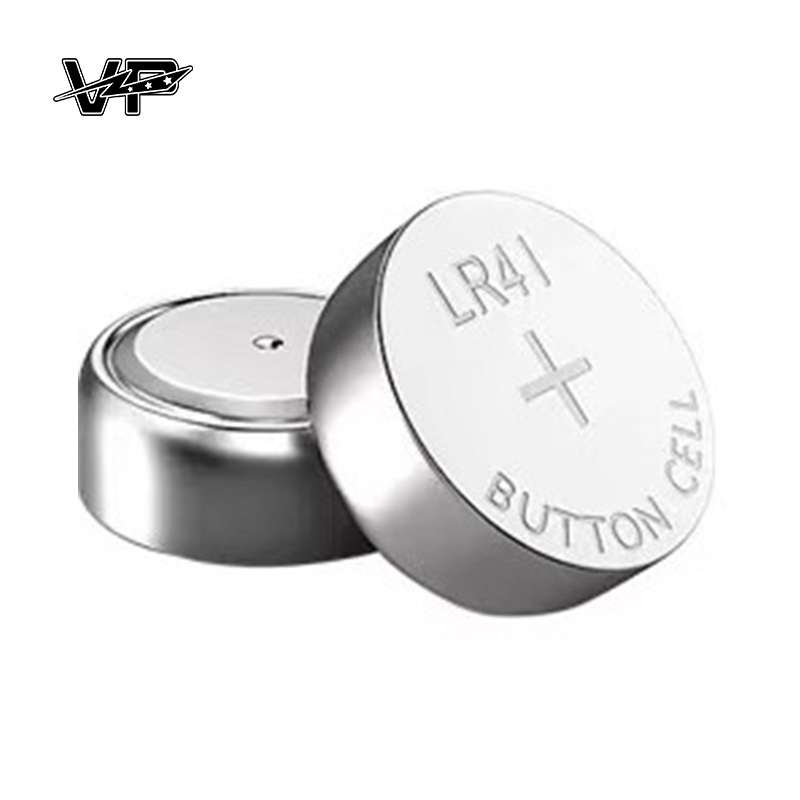

1.5 Volt LR41 AG3 Mercury Free Alkaline Button Battery With High Capacity
Quick Detail:
· High Efficiency And Energy Saving
· Zero Mercury Formula
· Long Lasting
· Minimal Self-Discharge
· Leak-Proof Construction
Description:

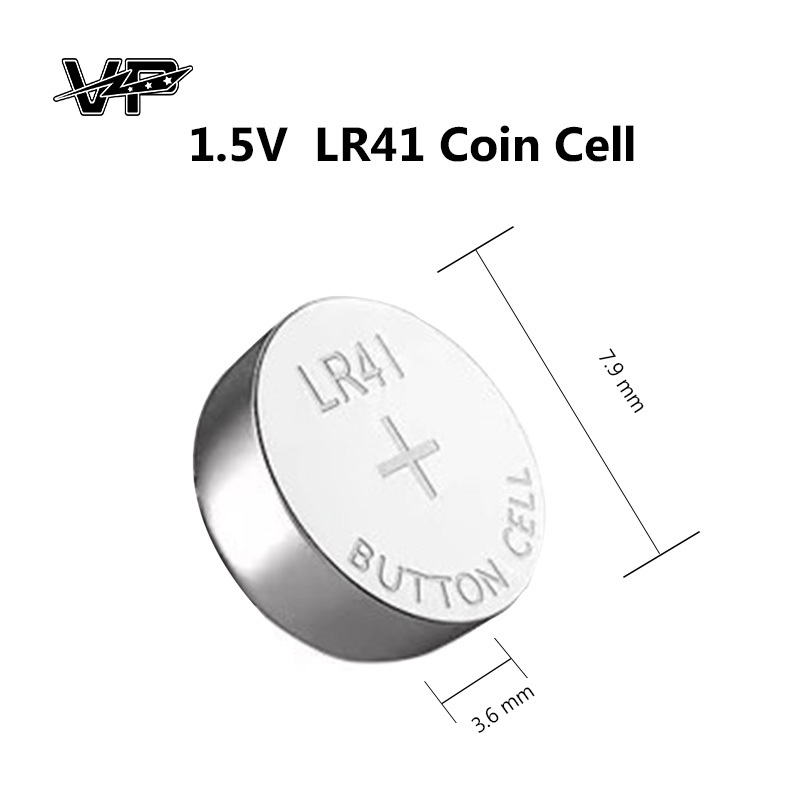

LR41 Alkaline Button Cell ( AG3 ) is a CE/RoHS-certified power solution for critical low-power applications. Delivering stable 1.5V discharge (down to 0.9V) and 33mAh capacity, its compact 7.9×3.6mm mercury-free design and leak-proof construction. The ultra-low self-discharge rate makes it ideal for medical devices (e.g., glucose meters, thermometers), industrial sensors, and precision calculators, offering reliable 1.5V output for continuous-use electronics.
Specifications:
|
Model Number |
IEC Design Voltage (V) |
End-Point Voltage (V) |
Nominal Capacity (mAH) |
Diameter (mm) |
Height (mm) |
Average Weight |
The same model |
|
LR521 |
1.5 |
0.9 |
7.5 |
5.8 |
2.15 |
0.2 |
AG0 |
|
LR621 |
1.5 |
0.9 |
13 |
6.8 |
2.1 |
0.3 |
AG1 |
|
LR726 |
1.5 |
0.9 |
24 |
7.9 |
2.6 |
0.45 |
AG2 |
|
LR41 |
1.5 |
0.9 |
33 |
7.9 |
3.6 |
0.61 |
AG3 |
|
LR626 |
1.5 |
0.9 |
18 |
6.8 |
2.6 |
0.34 |
AG4 |
|
LR754 |
1.5 |
0.9 |
40 |
7.9 |
5.4 |
0.88 |
AG5 |
|
LR920 |
1.5 |
0.9 |
28 |
9.5 |
2.1 |
0.54 |
AG6 |
|
LR927 |
1.5 |
0.9 |
35 |
9.5 |
2.7 |
0.65 |
AG7 |
|
LR1120 |
1.5 |
0.9 |
33 |
11.6 |
2.1 |
0.81 |
AG8 |
|
LR936 |
1.5 |
0.9 |
53 |
9.5 |
3.6 |
0.85 |
AG9 |
|
LR1130 |
1.5 |
0.9 |
65 |
11.6 |
3.1 |
1.15 |
AG10 |
|
LR721 |
1.5 |
0.9 |
16 |
7.9 |
2.1 |
0.37 |
AG11 |
|
LR43 |
1.5 |
0.9 |
85 |
11.6 |
4.2 |
1.42 |
AG12 |
|
LR44 |
1.5 |
0.9 |
130 |
11.6 |
5.4 |
1.86 |
AG13 |
Notices:
1. Not rechargeable, remove when fully drained.
2. Do not puncture, damage, and disassemble.
3. Do not mix batteries with metal stuff together.
4. Do not submerge the battery in the water.
5. Do not throw into fire or incinerate.
Applications:
Widely used in low-power, hign-tech electronics industry, as well as toys&gif:s industry, such as computers,calculators,cameras,radio instruments and various flash speakers.
FAQ
Q1 : Can I have a sample order for product?
A1 : Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2 : Who are we?
A2 : Guangzhou Victory Technology Co., Ltd., headquartered in Guangzhou, China, with 12 international production bases and an annual output of 40 billion units, provides reliable energy storage solutions globally.
Q3 : Can I get a lower price if I order in bulk?
A3 : Yes. Welcome to consult for more details.
Q4 : What is the minimum order of products?
A4 : Different products have different MOQ, but we can provide samples for you to test.
Q5 : What kind of certificates do you have?
A5 : If you need, We can provide KC, CB, CE, PSE, FCC, RoHS, and UN38.3, etc.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
