Place of Origin:
China
Brand Name:
VP
Certification:
RoHS CE IEC
Model Number:
LR726 AG2

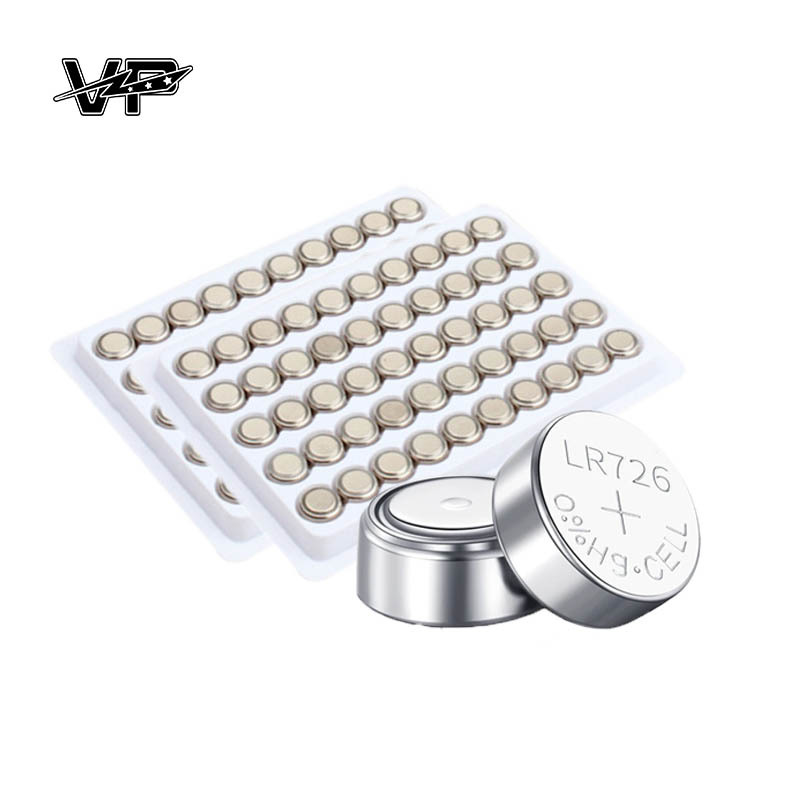

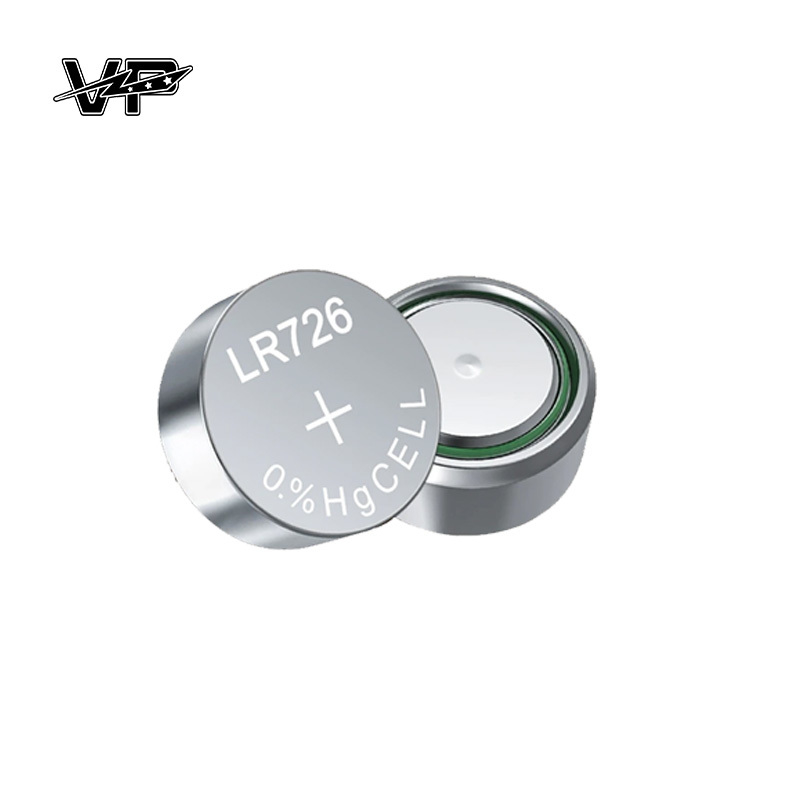

AG2 Alkaline Manganese Button Battery LR726 1.5V Leak Proof No Hg Coin Cell
Quick Detail:
· Zinc manganese dioxide button battery (Non-Hg, Non-Cadmium)
· Built-in protection circuit (overcharge/overheat) and sealed design
· Leakproof technology, safe and durable
· Excellent leakage resistance, long shelf life
· Excellent storage performance and low self-discharge rate
Description:
AG2 watch battery also labeld as LR726, provides continuous power and stable voltage. The appearance is stainless steel, good sealing performance, effectively preventing short circuit and leakage current between positive and negative poles of battery.improving the safety of the battery. Our alkaline is environmental protection. Not only for watch usage, but also apply to many kind of electronic device like toy, laser pointer, medical device, clinical thermometer. Our factory manufactur the whole series of alkaline button cell from AG0 to AG13. If you need other series battery, please contact us.
Specifications:
|
Model Number |
IEC Design Voltage (V) |
End-Point Voltage (V) |
Nominal Capacity (mAH) |
Diameter (mm) |
Height (mm) |
Average Weight |
The same model |
|
LR521 |
1.5 |
0.9 |
7.5 |
5.8 |
2.15 |
0.2 |
AG0 |
|
LR621 |
1.5 |
0.9 |
13 |
6.8 |
2.1 |
0.3 |
AG1 |
|

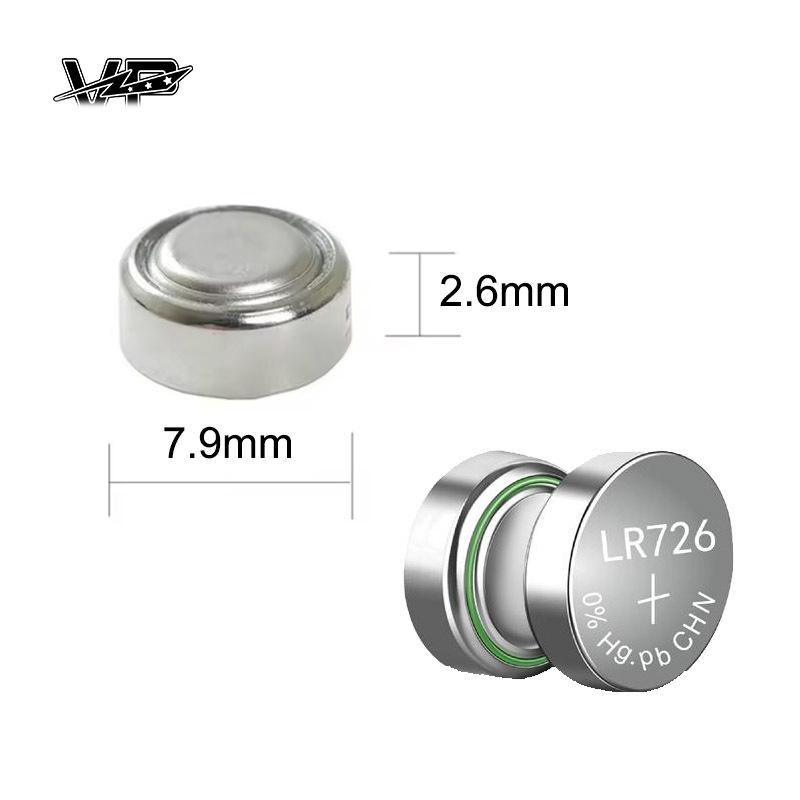

LR726 |
1.5 |
0.9 |
24 |
7.9 |
2.6 |
0.45 |
AG2 |
|
LR41 |
1.5 |
0.9 |
33 |
7.9 |
3.6 |
0.61 |
AG3 |
|
LR626 |
1.5 |
0.9 |
18 |
6.8 |
2.6 |
0.34 |
AG4 |
|
LR754 |
1.5 |
0.9 |
40 |
7.9 |
5.4 |
0.88 |
AG5 |
|
LR920 |
1.5 |
0.9 |
28 |
9.5 |
2.1 |
0.54 |
AG6 |
|
LR927 |
1.5 |
0.9 |
35 |
9.5 |
2.7 |
0.65 |
AG7 |
|
LR1120 |
1.5 |
0.9 |
33 |
11.6 |
2.1 |
0.81 |
AG8 |
|
LR936 |
1.5 |
0.9 |
53 |
9.5 |
3.6 |
0.85 |
AG9 |
|
LR1130 |
1.5 |
0.9 |
65 |
11.6 |
3.1 |
1.15 |
AG10 |
|
LR721 |
1.5 |
0.9 |
16 |
7.9 |
2.1 |
0.37 |
AG11 |
|
LR43 |
1.5 |
0.9 |
85 |
11.6 |
4.2 |
1.42 |
AG12 |
|
LR44 |
1.5 |
0.9 |
130 |
11.6 |
5.4 |
1.86 |
AG13 |
Notices:
1. Align the ""-"" mark of the battery compartment with the negative electrode of the battery before installation.
2. It is forbidden to mix new and old batteries to prevent overheating due to internal resistance differences.
3. If the electrolyte leaks, immediately neutralize it with sodium bicarbonate solution and replace the damaged battery compartment.
4. Anti-static bags + bubble film are required for shipping to prevent high temperature deformation in the container.
5. Please place discarded batteries in hazardous waste recycling bins.
Applications:
Widely used in wristwatches, LED flash, computers, music cards, medical instruments, PDA, MP3, shoe lamps, card-style radio, IC Card and other electronic product.
FAQ
Q1 : Do you have OEM/ODM services?
A1 : We can provide OEM and ODM services, manufacture their own logo and packaging according to customers' design needs to develop their market.
Q2 : Who are we?
A2 : Guangzhou Victory Technology Co., Ltd., headquartered in Guangzhou, China, with 12 international production bases and an annual output of 40 billion units, provides reliable energy storage solutions globally.
Q3 : How do we ensure quality?
A3 : Our products meet global safety and quality standards, certified by KC, CB, CE, PSE, FCC, RoHS, and UN38.3, ensuring top-tier reliability and customer satisfaction worldwide.
Q4 : What is the minimum order of products?
A4 : Different products have different MOQ, but we can provide samples for you to test.
Q5 : How can l believe that after payment you will send the goods to me?
A5 : First, We provide factory inspection, real-time logistics tracking and company business registration and filing to ensure the transparency and credibility of the entire transaction. Second,our based on long-termcooperation considerations. What's more, honesty and stability are our cooperation philosophy.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
