Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
MSDS CE IEC UN38.3 ROHS TUV IEC
Model Number:
NILE-R-100

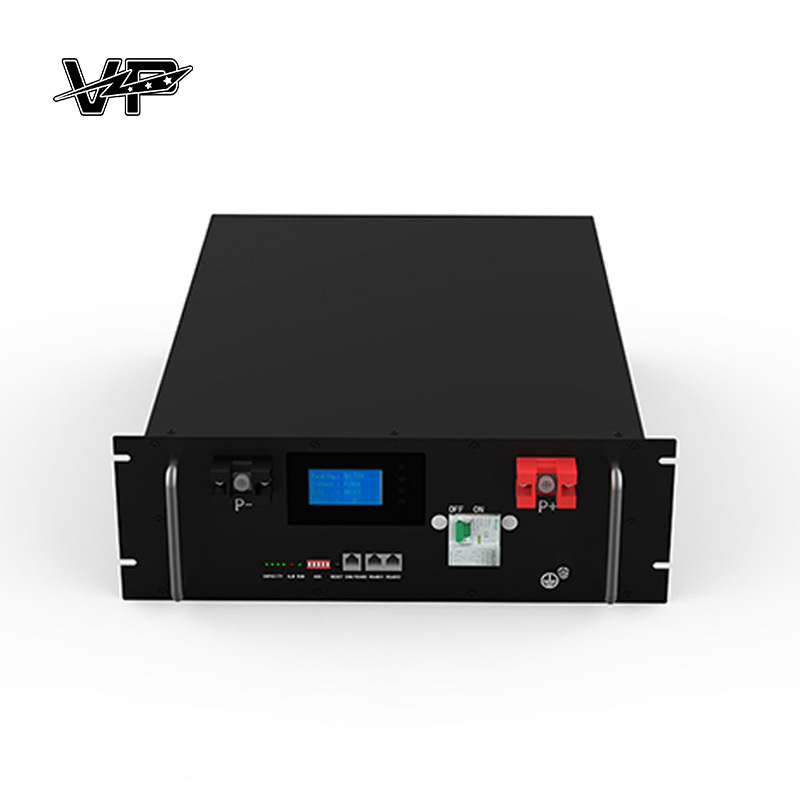

100AH 5.12KWH Power Scalable Rack Mounted Solar Home Storage System For Apartment
Quick Detail:
·LiFePO₄ Cell Chemistry
·Advanced BMS Protection
·On-grid/off-grid dual compatibility
·Renewable Energy Integration
·CE, IEC, UN38.3, MSDS compliance
Specifications:
|
Product Performance |
NILE-R-100 |
NILE-R-200 |
|
|
Standard Voltage |
51.2V |
51.2V |
|
|
Rated Capacity |
100AH |
200AH |
|
|
Rated Power |
5.12KWH |
10.24KWH |
|
|
Operating Voltage |
42V-58.4V |
42V-58.4V |
|
|
Standard Charging Current |
50A |
100A |
|
|
Maximum Charge Current |
100A |
100A |
|
|
Maximum Discharge Current |
100A |
100A |
|
|
Operating Temperature Range |
0-40℃(Charge) -20-40℃(Discharge) |
||
|
Storage Temperature |
-10℃-35℃(1Month) 25±2℃(3Month)65%±20%RH |
||
|
Communication |
CAN / RS485 |
||
|
Cycle Life |
6000 |
||
|
Size(L*W*H) |
600*430*160mm |
1044*430*160mm |
|
|
Weight |
50KG |
100KG |
|
|
High |
0-3000 |
||
|
Water Proof Grade |
IP20 |
IP20 |
|
|
Humidity Range |
5~80% |
5~80% |
|
Description:

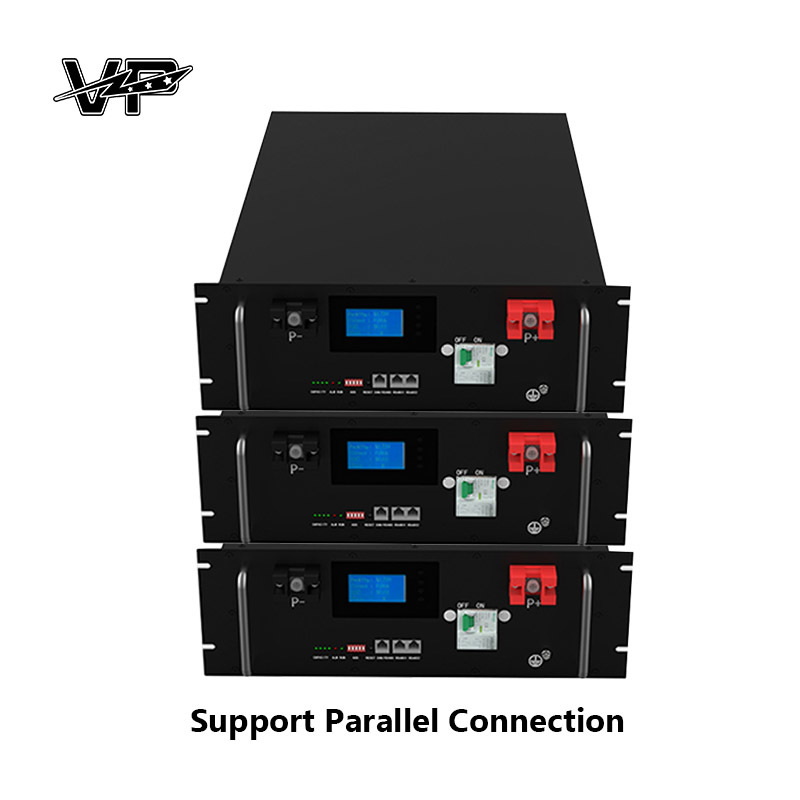

This rack-mounted ESS leverages A-grade LiFePO₄ cells supporting parallel expansion, delivering 6,000 cycles for unparalleled longevity. Features 100A continuous charging/discharging with pure sine wave output for sensitive equipment (HVAC/medical devices). Integrated RS485/CAN interfaces and intelligent BMS enable real-time monitoring of overcharge, discharge, short-circuit, and thermal anomalies. Operates at -20°C to 40°C (discharge) and 0-40°C (charge) with IP20-rated humidity resistance (5-80% RH). Protocol-switching compatibility for seamless solar integration. And CE / IEC / UN38.3 / MSDS certified.
Notices:
1. Maintain ambient temperature: 0-40°C (charging), -20-40°C (discharging).
2. Operate within 5-80% RH (IP20 limits).
3. Allow ≥30cm clearance around vents for thermal management.
4. Calibrate BMS parameters before use, turn on the energy storage backup mode and set the charge and discharge thresholds.
5. Verify protocol matching pre-connection.
Applications:
Ideal for: Microgrid installations , Telecom backup systems , Industrial UPS solutions , Renewable energy storage.
FAQ
Q1 : Are you a manufacturer or a trading company?
A1 : We are manufacturer.
Q2 : Is it OK to print my logo on the product?
A2 : Yes. Please inform us formally before our production.
Q3 : What are your company's strengths?
A3 : We only provide high quality batteries, guarantee on-time shipment, and also provide excellent after-sales service.
Q4 : How to proceed an order for product?
A4 : Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5 : Can we visit your factory?
A5 : Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
