Place of Origin:
China
Brand Name:
VP
Certification:
MSDS、CE、IEC、UN38.3
Model Number:
VP-S

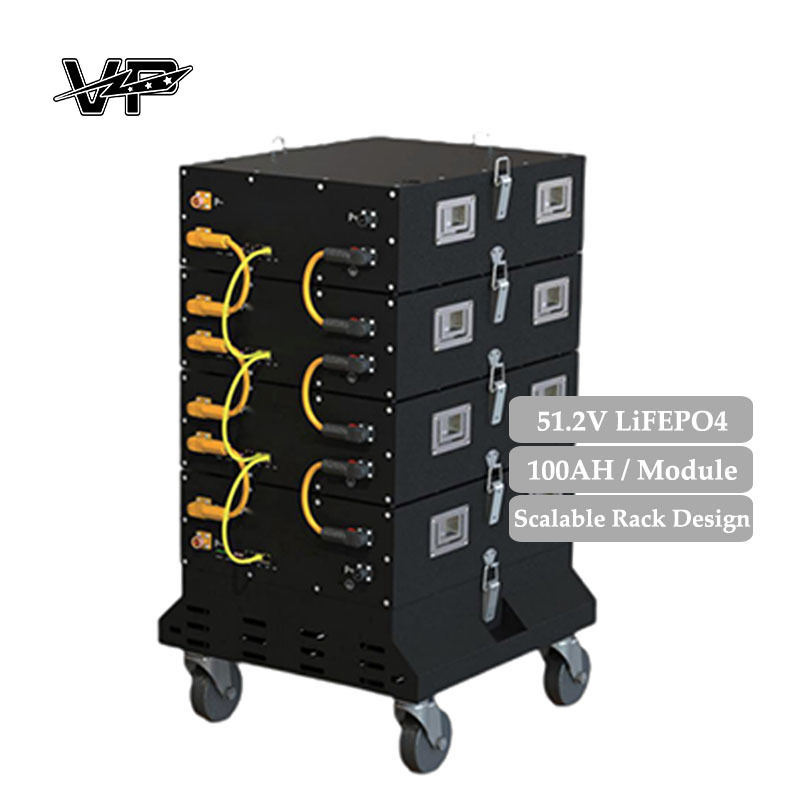

51.2V/100AH Renewable Ready Rack Solution Home Energy Storage System
Quick Detail:
· Premium LiFePO4 Chemistry
· User-Configurable Inverter Protocol via Display Interface
· Bimodal Grid Interconnection Compatibility
· Support For Up To16 Batteries In Parallel
· Renewable Energy Integration
Specifications:
|
PRODUCT PERFORMANCE |
VP-S |
VP-R |
VP-W |
|
STANDARD VOLTAGE |
51.2V |
||
|
RATED CAPACITY |
100AH |
||
|
OPERATING VOLTAGE |
42V-58.4V |
||
|
STANDARD CHARGING CURRENT |
100A |
||
|
MAXIMUM CHARGE/DISCHARGE CURRENT |
50A |
||
|
OPERATING TEMPERATURE RANGE |
0-40℃(CHARGE) -20-40℃(DISCHARGE) |
||
|
STORAGE TEMPERATURE |
-10℃-35℃(1MONTH) 25±2℃(3MONTH)65%±20%RH |
||
|
CYCLE LIFE |
≥80% CAPACITY AFTER 6000 CYCLES AT 0.5C/25℃,100% DOD |
||
|
COMMUNICATION |
CAN&RS485 |
||
|
WATER PROOF GRADE |
IP20 |
||
|
HUMIDITY RANGE |
5~80% |
||
|
NET SIZE |
565*440*170MM |
||
|
CARTON PACKAGING |
650*490*235MM |
||
|
PALLET |
1 *1.2*1.5M |
||
|
PER CARD BOARD |
24BOX |
||
|
20-FOOT CONTAINER |
240BOX |
||
|
40-FOOT CONTAINER |
480BOX |
||
|
NET WEIGHT |
56.2±3KG |
||
|
PACKING WEIGHT |
59KG |
||
Description:
Engineered with premium LiFePO₄ cells, this 51.2V / 100Ah system delivers 50A continuous discharge with pure sine wave output for sensitive equipment (HVAC/medical devices). Features integrated CAN/RS485 communication, IP20-rated enclosure (5-80% humidity tolerance), and intelligent BMS for real-time overcharge/discharge/short-circuit/temperature monitoring. Supports -20°C to 40°C discharge and grid/off-grid dual-mode operation. Certified for more than 6,000 cycles (100% DoD at 0.5C/25°C) with parallel scalability (≤16 units). CE / IEC / UN38.3 / MSDS compliant.
Notices:
1. Ensure proper polarity alignment during connection. Reverse polarity may cause catastrophic failure of battery management system (BMS).
2. Extreme temperatures (<-20℃ or >40℃) will significantly shorten the life of lithium batteries.
3. Allow ≥30cm clearance around vents for thermal management.
4. Do not place debris on top of the device.
5. Forbidden to disassemble the outer shell/add external batteries.
Applications:
Widely used to meet a variety of different scenarios : It can provide alternating current for families, stores, schools, factories, farms, etc., flexibly covering the needs of multiple scenarios, enabling each kilowatt-hour of electricity to create higher value and improving theenergy utilization rate.
FAQ
Q1 : Are you a manufacturer or a trading company?
A1 : We are manufacturer.
Q2 : Is it OK to print my logo on the product?
A2 : Yes. Please inform us formally before our production.
Q3 : What informations should i provide to make an order?
A3 : Usually, we need to know the voltage, the current and the size and quantity.
Q4 : How do we control the quality?
A4 : We will make samples before mass production and test them. After sample approved, we will begin mass production. Doing 100% inspection during production and then do random inspection before.
Q5 : Is this product safe?
A5 : Anti-short circuit, anti-scalding, explosion-proof, and environmentally friendly.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
