Place of Origin:
China
Brand Name:
VP
Certification:
MSDS、CE、IEC、UN38.3
Model Number:
VP-AC-S4
| Product Name | High Voltage Solar Power Energy Storage System |
| Application | Independent power systems, Residential energy autonomy, Priority load backup |
| Single Package Size | 630*380*1120MM |
| Protection | Smart BMS |
| Energy | 20.4kwh |
| Cell Chemistry | Utilizes lithium iron phosphate technology |
| Cell Configuration | 4*32S1P |
| Cycle Life | 6,000 Times |
| PRODUCT PERFORMANCE | VP-AC-S2 | VP-AC-S3 | VP-AC-S4 | VP-AC-S5 |
|---|---|---|---|---|
| RATED CAPACITY | 10.24KWH | 15.3KWH | 20.4KWH | 25.6KWH |
| CELL TYPE | LITHIUM IRON PHOSPHATE | |||
| CELL CONFIGURATION | 2*32S1P | 3*32S1P | 4*32S1P | 5*32S1P |
| RATED VOLTAGE | 204.8V | 307.2V | 409.6V | 512V |
| RATED CAPACITY | 50AH | |||
| OPERATING VOLTAGE RANGE | 172.8V-233.6V | 259.2V-350.4V | 345.6V-467.2V | 432V-584V |
| RATED CHARGE AND DISCHARGE CURRENT | 50A | |||
| RATED CHARGE AND DISCHARGE POWER | 10.24KW | 15.36KW | 20.48KW | 25.6KW |
| COMMUNICATION | CAN/RS485 | |||
| CYCLE LIFE | 6000 | |||
| OPERATING TEMPERATURE RANGE | -15-45℃ | |||
| RELATIVE HUMIDITY | 5%-65% | |||
| WEIGHT | 121±4KG | 169±6KG | 217±8KG | 265±10KG |
| SIZE(L*W*H) | 630*380*720MM | 630*380*920MM | 630*380*1120MM | 630*380*1320MM |
| BATTERY BOX PACKAGING WEIGHT | 64KG | |||
| MAIN CONTROL BOX PACKAGING WEIGHT | 24.3KG | |||

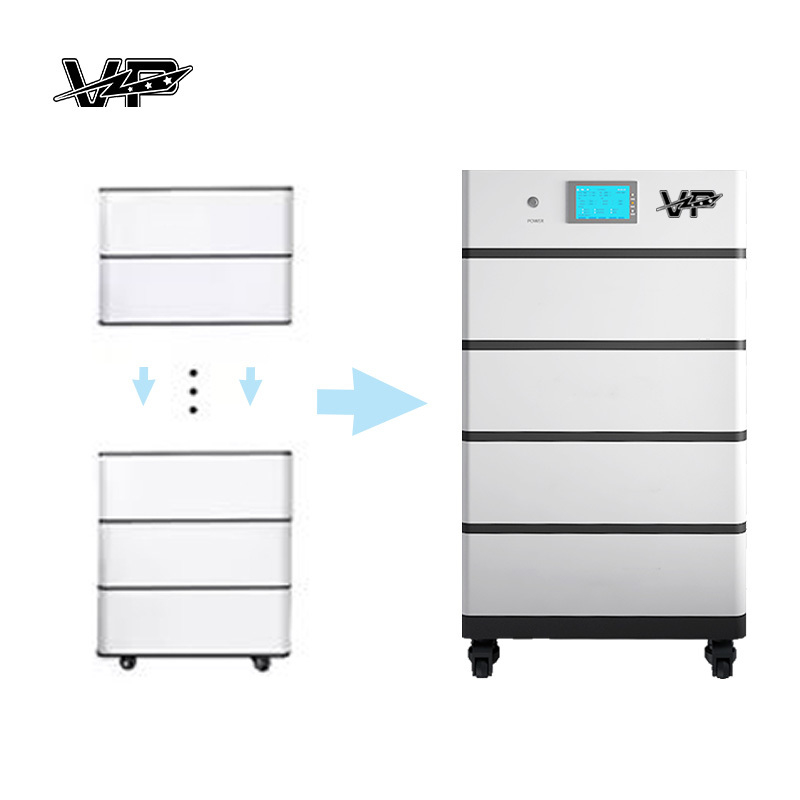

Maximize ROI with vertically stackable LiFePO₄ systems (630×380mm footprint; heights 720-1320mm) and a proven cycle life of 6,000 cycles. Delivers 10.24-25.6KWh capacity at 204-512V with 50A rated current. Integrated BMS and CAN/RS485 ensure safe operation (-15°C to 45°C), while dual-mode grid/off-grid compatibility supports solar integration. Pallet-ready weights (121-265kg) simplify transport.
CE/IEC/UN38.3 certified for telecom towers, microgrids, and emergency backup.
A1: We are manufacturer.
A2: Guangzhou Victory Technology Co., Ltd., headquartered in Guangzhou, China, with 12 international production bases and an annual output of 40 billion units, provides reliable energy storage solutions globally.
A3: With 12 international production bases; professional sales team and R&D team; qualified products and competitive prices; timely delivery; sincere service.
A4: Of course, we can do customized services for our partners.
A5: If you need, We can provide KC, CB, CE, PSE, FCC, RoHS, and UN38.3, etc.
If you have any other questions, please feel free to contact us. Welcome your inquiry.
