Place of Origin:
China
Brand Name:
VP
Certification:
MSDS、CE、IEC、UN38.3
Model Number:
VP-AC-S5
| Attribute | Value |
|---|---|

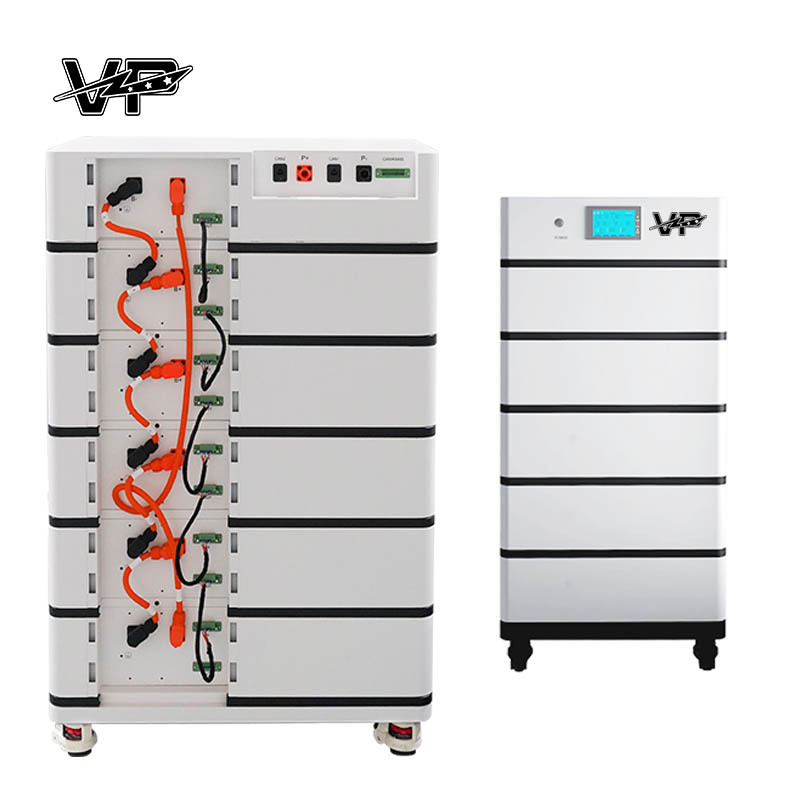

| Product Name | LiFePO4 Solar Battery Energy Storage System |
| Cycle Life | 6,000 Times |
| Cell Chemistry | Lithium Iron Phosphate |
| Single Package Size | 630*380*1320MM |
| Protection | Active Balancing BMS |
| Energy | 25.6kwh |
| Cell Configuration | 5*32S1P |
| Application | Remote worksite power applications, Household energy independence, Critical infrastructure backup |

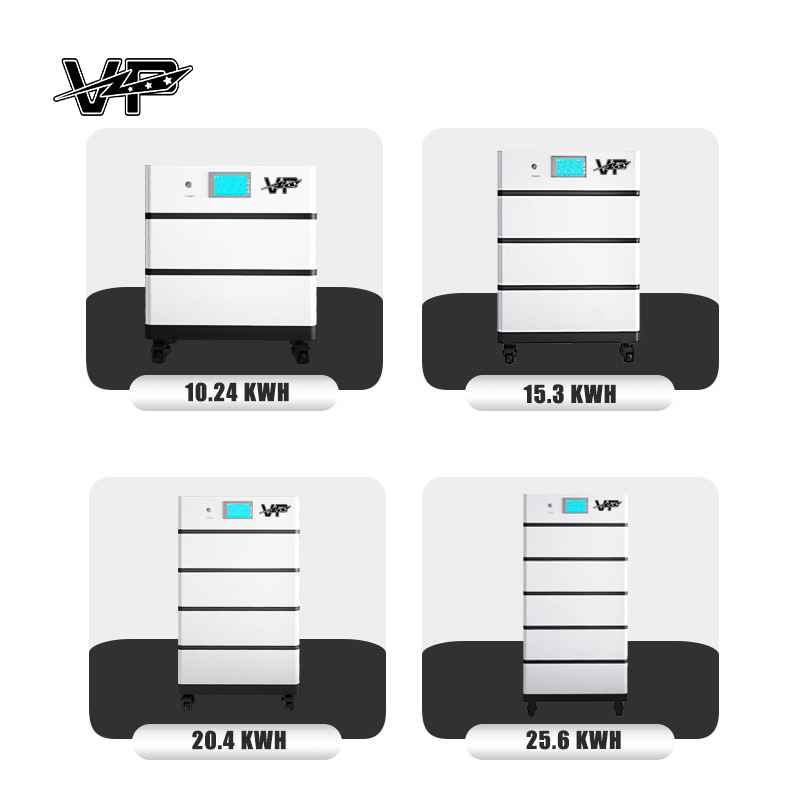

| PRODUCT PERFORMANCE | VP-AC-S2 | VP-AC-S3 | VP-AC-S4 | VP-AC-S5 |
|---|---|---|---|---|
| RATED CAPACITY | 10.24KWH | 15.3KWH | 20.4KWH | 25.6KWH |
| CELL TYPE | LITHIUM IRON PHOSPHATE | |||
| CELL CONFIGURATION | 2*32S1P | 3*32S1P | 4*32S1P | 5*32S1P |
| RATED VOLTAGE | 204.8V | 307.2V | 409.6V | 512V |
| RATED CAPACITY | 50AH | |||
| OPERATING VOLTAGE RANGE | 172.8V-233.6V | 259.2V-350.4V | 345.6V-467.2V | 432V-584V |
| RATED CHARGE AND DISCHARGE CURRENT | 50A | |||
| RATED CHARGE AND DISCHARGE POWER | 10.24KW | 15.36KW | 20.48KW | 25.6KW |
| COMMUNICATION | CAN/RS485 | |||
| CYCLE LIFE | 6000 | |||
| OPERATING TEMPERATURE RANGE | -15-45℃ | |||
| RELATIVE HUMIDITY | 5%-65% | |||
| WEIGHT | 121±4KG | 169±6KG | 217±8KG | 265±10KG |
| SIZE(L*W*H) | 630*380*720MM | 630*380*920MM | 630*380*1120MM | 630*380*1320MM |
| BATTERY BOX PACKAGING WEIGHT | 64KG | |||
| MAIN CONTROL BOX PACKAGING WEIGHT | 24.3KG | |||

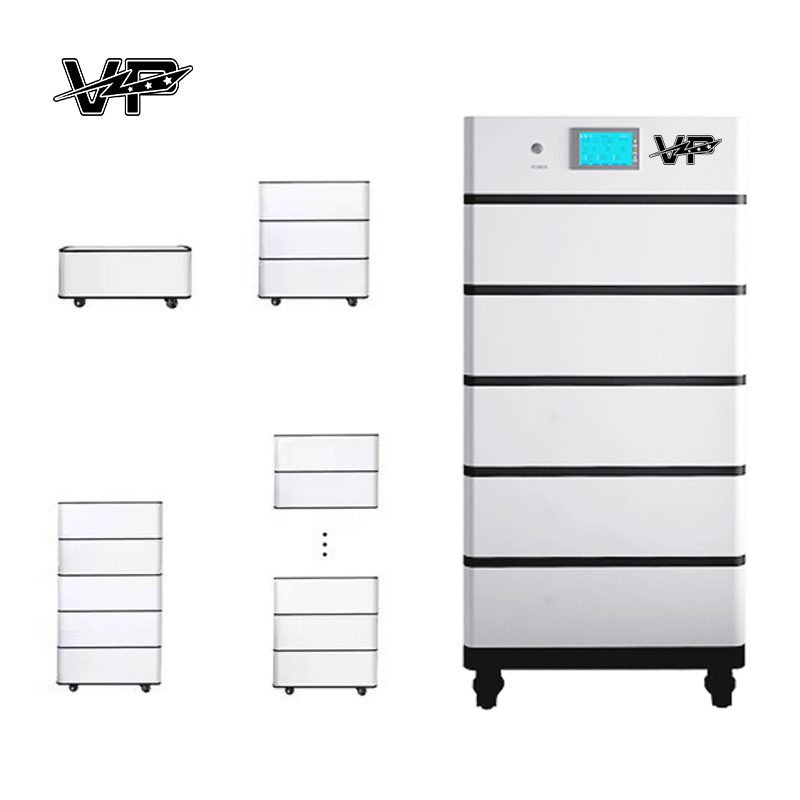

Built for deployment in multiple equipment power scenarios, these LiFePO₄ systems maintain 50A output from -15°C to 45°C with 5-65% humidity resilience. Intelligent BMS safeguards against electrical faults while pure sine wave output protects sensitive medical/industrial equipment. Scalable 10.24-25.6KWh capacity (S2-S5) supports high-load appliances via 204-512V voltage range. Features protocol-switching display, CAN/RS485 interfaces, and 6,000-cycle lifespan.
Ideal for space-constrained commercial sites: retail backups, cell towers, and multi-family units.
