Place of Origin:
China
Brand Name:
VP
Certification:
MSDS CE IEC UN38.3
Model Number:
VP-W

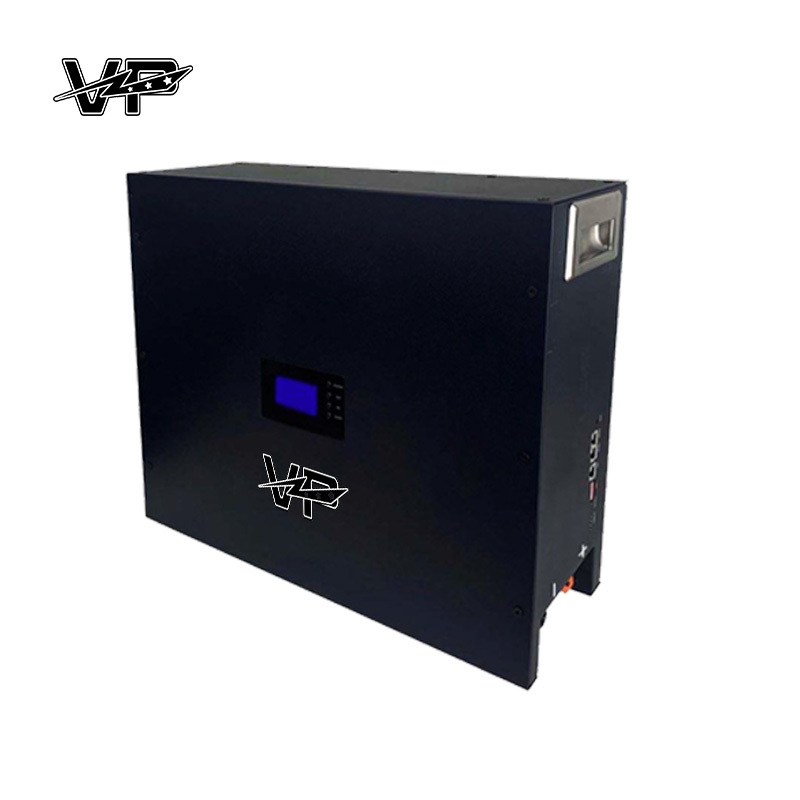

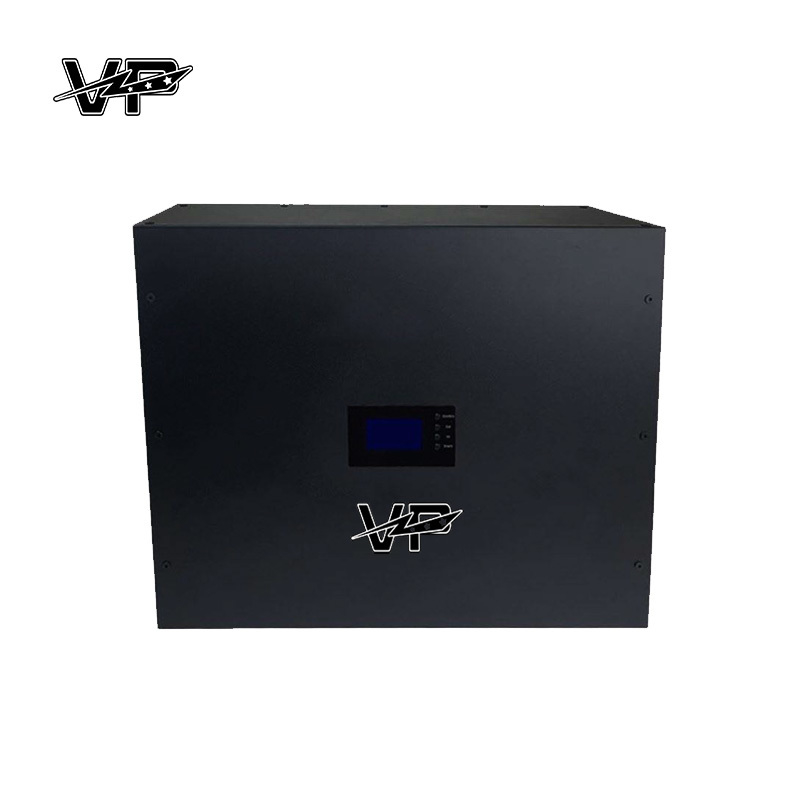

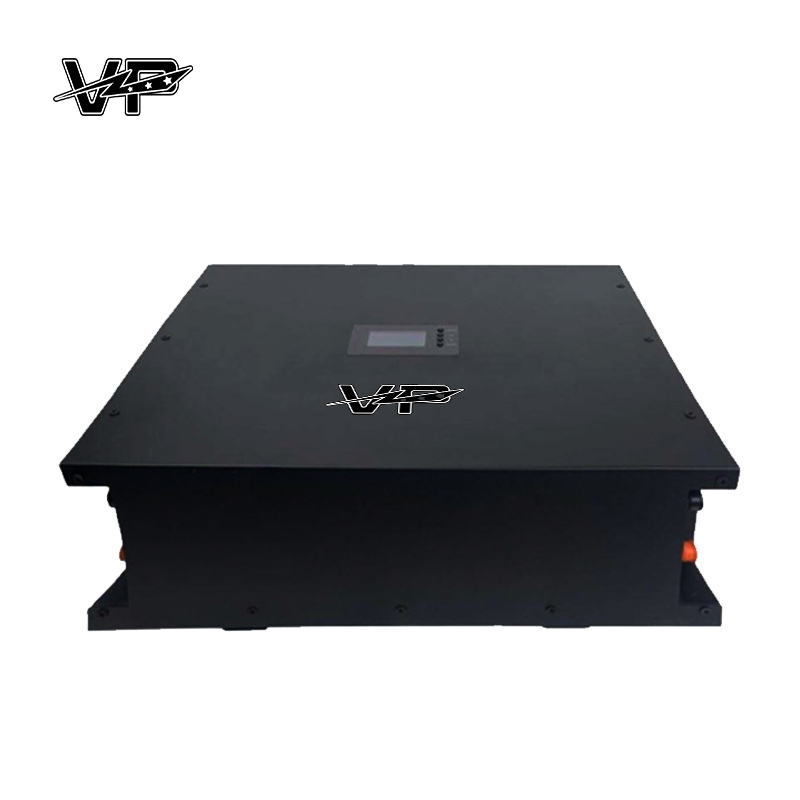

6000 Cycle Life LiFePO4 Energy Storage Solar Lithium Battery Power Bank
Quick Detail:
· One-stop residential energy storage solutions
· All product adopt LiFeP04 cell
· Protocol Selection via Display Terminal
· BMS intelligent protection
· Multi-Module Expansion Support
Specifications:
|
PRODUCT PERFORMANCE |
VP-S |
VP-R |
VP-W |
|
STANDARD VOLTAGE |
51.2V |
||
|
RATED CAPACITY |
100AH |
||
|
OPERATING VOLTAGE |
42V-58.4V |
||
|
STANDARD CHARGING CURRENT |
100A |
||
|
MAXIMUM CHARGE/DISCHARGE CURRENT |
50A |
||
|
OPERATING TEMPERATURE RANGE |
0-40℃(CHARGE) -20-40℃(DISCHARGE) |
||
|
STORAGE TEMPERATURE |
-10℃-35℃(1MONTH) 25±2℃(3MONTH)65%±20%RH |
||
|
CYCLE LIFE |
≥80% CAPACITY AFTER 6000 CYCLES AT 0.5C/25℃,100% DOD |
||
|
COMMUNICATION |
CAN&RS485 |
||
|
WATER PROOF GRADE |
IP20 |
||
|
HUMIDITY RANGE |
5~80% |
||
|
NET SIZE |
565*440*170MM |
||
|
CARTON PACKAGING |
650*490*235MM |
||
|
PALLET |
1 *1.2*1.5M |
||
|
PER CARD BOARD |
24BOX |
||
|
20-FOOT CONTAINER |
240BOX |
||
|
40-FOOT CONTAINER |
480BOX |
||
|
NET WEIGHT |
56.2±3KG |
||
|
PACKING WEIGHT |
59KG |
||
Description:
1. Under normal conditions, using lithium iron phosphate battery technology, with excellent safety, 6 thousands of cycles, 100% DOD.
2. Built-in automatic protection function to prevent overcharging, overdischarging, overcurrent and overheating.
3. Maintenance free.
4. Internal battery balance.
5. Light weight: about 40%~50% of the weight of lead-acid batteries.
6. Can be charged using most standard lead acid charge (set).
7. Wide temperature range: -20 ° C ~ 60 ° C.
8. Support for series application extensions (up to 51.2V) and two parallels.
VP batteries come equipped with advanced monitoring and control systems that provide real-time data on battery performance, temperature, and other critical parameters, ensuring optimal battery operation and extending its lifespan. These batteries are versatile and can be used in various applications, including backup power for data centers, telecommunications equipment, and renewable energy systems.
Notices:
1. Prohibited to install in flammable environments, humidity > 80% or dusty areas.
2. Use flame-retardant cables for battery connection, with clear positive and negative pole markings to prevent short-circuit hazards.
3. Maintain ambient temperature: 0-40°C (charging), -20-40°C (discharging).
4. Maintain 20-80% SoC for cycle life preservation.
5. Avoid direct sunlight to accelerate the aging of the shell.
Applications:
Solar-Wind Power System / City Grid (On/Off) / Community and Family / Telcom Base / CATV system / Computer Server Center / Medical Instrument
FAQ
Q1 : Are you a manufacturer or a trading company?
A1 : We are manufacturer.
Q2 : How do we ensure quality?
A2 : Our products meet global safety and quality standards, certified by KC, CB, CE, PSE, FCC, RoHS, and UN38.3, ensuring top-tier reliability and customer satisfaction worldwide.
Q3 : What is the shipping methods?
A3 : By sea, by air, by courier, by train.
Q4 : Is the price negotiable?
A4 : Yes, the price is negotiable. But the prices we give is based on the cost and it is quite reasonable, we can give discounts, but not much. And the Prices also have great elationship with the order quantity and material.
Q5 : What informations should i provide to make an order?
A5 : Usually, we need to know the voltage, the current and the size and quantity.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
