Place of Origin:
China
Brand Name:
VP
Certification:
MSDS CE UN38.3 ROHS
Model Number:
nile-100

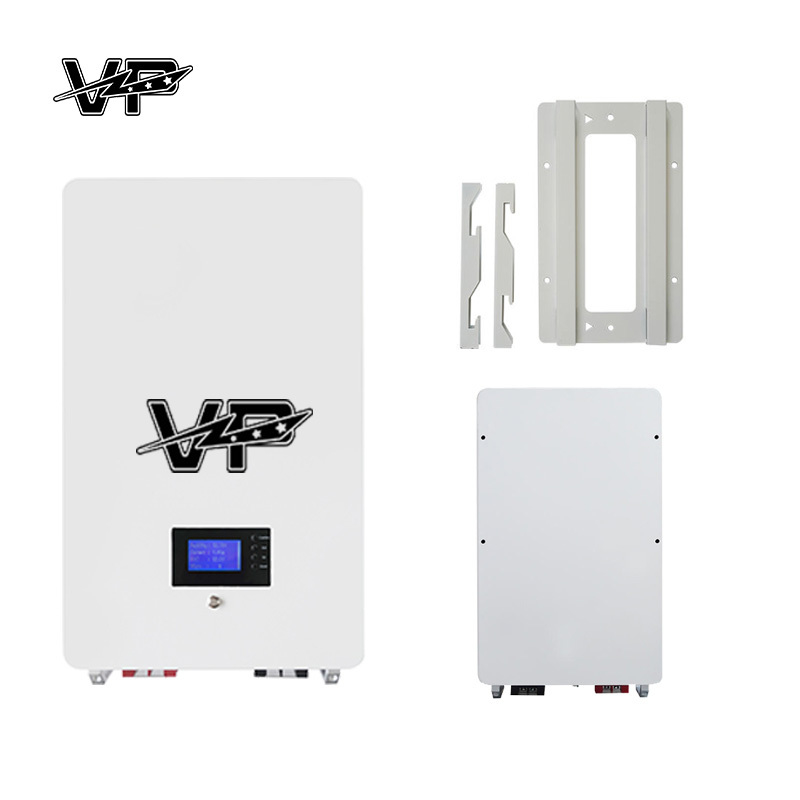

Lithium Iron LiFePO4 Energy Storage Batteries 51.2V 100Ah Solid Battery
Quick Detail:
· Compatible with many mainstream inverters
· BMS has the function of automatic address allocationand can use regular network cables without dialing andconnecting
· Advanced integration technology ensures optimal system performance and lower cost
· ALL IN ONE container design optional, easy for installation and maintenance
· The charging and static balance strategies can be flexiblyset,effectively extending the service life
Specifications:
|
PRODUCT PERFORMANCE |
NILE-100 |
NILE-200 |
|
STANDARD VOLTAGE |
51.2V |
51.2V |
|
RATED CAPACITY |
100AH |
200AH |
|
OPERATING VOLTAGE |
42V-584V |
42V-584V |
|
STANDARD CHARGING CURRENT |
50A |
100A |
|
MAXIMUM CHARGE/DISCHARGE CURRENT |
100A |
100A |
|
OPERATING TEMPERATURE RANGE |
0-40℃(CHARGE) -20-40℃(DISCHARGE) |
|
|
STORAGE TEMPERATURE |
-10℃-35℃(1MONTH) 25±2℃(3MONTH)65%±20%RH |
|
|
CYCLE LIFE |
6000 CYCLES @25℃ 50A CHARGE AND DISCHARGE CURRENT 70%STANDARD CAPACITY 80%DOD |
|
|
COMMUNICATION |
CAN&RS485 |
|
|
WATER PROOF GRADE |
IP20 |
IP20 |
|
HUMIDITY RANGE |
5~80% |
5~80% |
|
NET SIZE |
368*600*150MM |
520*830*159MM |
|
CARTON PACKAGING |
435*695*250MM |
590*900*260MM |
|
PALLET |
1 *1.2*1.5M |
1 *1.2M |
|
PER CARD BOARD |
28BOX |
14BOX |
|
20-FOOT CONTAINER |
280BOX |
144BOX |
|
40-FOOT CONTAINER |
560BOX |
288BOX |
|
NET WEIGHT |
46±3KG |
98±3KG |
|
PACKING WEIGHT |
51KG |
101KG |
Description:
Functions of LiFePO4 Battery Pack BMS (Battery Management System):
(1) Measurement of LiFePO4 battery terminal voltage
(2) Energy balance between single LiFeP04 cells
(3) Total battery voltage measurement
(4) Total battery current measurement
(5) SOC calculation: estimate the remaining power of the Lithium battery
(6) Dynamically monitor the working state of the LiFePO4 battery pack: prevent over charging or over discharging
(7) Real-time data display
(8) Data recording and analysis: maintain the reliability and efficiency of the entire battery operation
Notices:
1. Use flame-retardant cables for battery connection, with clear positive and negative pole markings to prevent short-circuit hazards.
2. Check that all interface screws are tightened and the communication line (RS485/CAN) is connected correctly.
3. Extreme temperatures (<-20℃ or >40℃) will significantly shorten the life of lithium batteries.
4. Calibrate BMS parameters before use, turn on the energy storage backup mode and set the charge and discharge thresholds.
5. System enclosure requires reliable grounding; lightning arresters must connect to a dedicated earth grid.
Applications:
Products are widely used in new energy yehiclessightseeing vehicles, golf carts, communication base stations, wind energy storage, submarinesand other equipment.
FAQ
Q1 : Are you a manufacturer or a trading company?
A1 : We are manufacturer.
Q2 : Who are we?
A2 : Guangzhou Victory Technology Co., Ltd., headquartered in Guangzhou, China, with 12 international production bases and an annual output of 40 billion units, provides reliable energy storage solutions globally.
Q3 : Do you support OEM/ODM?
A3 : Of course, we can do customized services for our partners.
Q4 : What can I buy from here?
A4 : We specialize in products for industries such as automotive, electric vehicles, and tourism, offering a range of dry batteries, lithium-ion batteries, home energy storage systems, commercial & industrial energy storage systems and emergency start equipment.
Q5 : What kind of certificates do you have?
A5 : If you need, We can provide KC, CB, CE, PSE, FCC, RoHS, and UN38.3, etc.
If you have any other questions, please feel free to contact us. Welcome your inquiry .
