Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
MSDS CE UN38.3 ROHS TUV IEC
Model Number:
VS R106P0050 M
| Battery Data | |
| Rated load | 106KWH |
| Rated Power | 50KW |
| Battery Cell Combination | 1P160S |
| Nominal Capacity | 104AH |
| Matching Computer | 50KW |
| DC Side Voltage Range | 432-584V |
| Battery Protection Value | 2.7-3.6V |
| Discharge Energy | ≥95.4KWH |
| Battery Cycle Efficiency | ≥90%@AC |
| General Parameter | |
| Dimensions(W*H*D) | 1794*1024*2160mm |
| Weight | 2300KG |

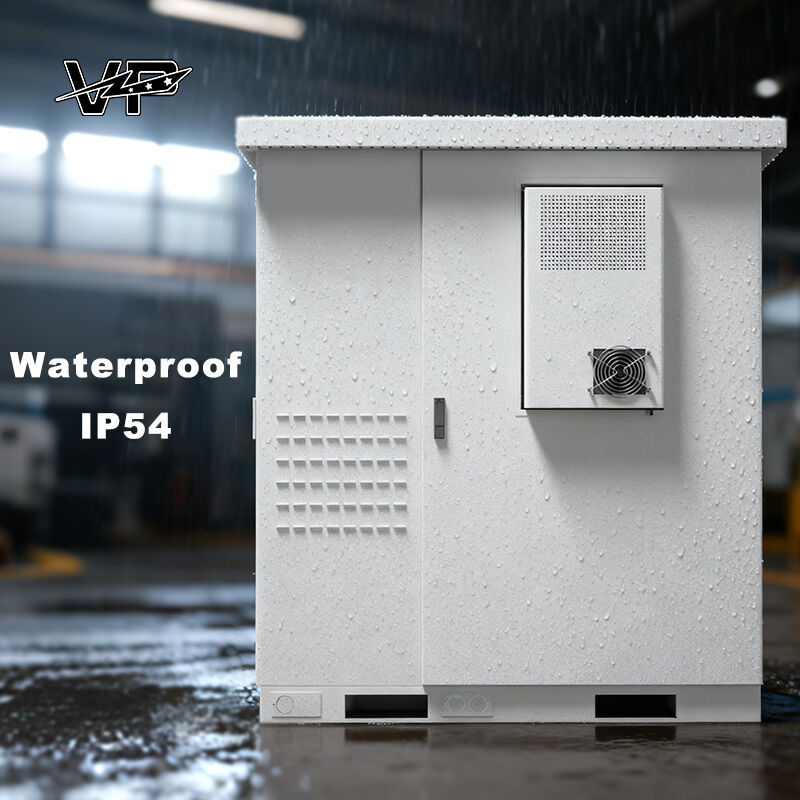

| Protection Grade | IP54 |
| Humidity Range | ≤95% (Not-Condensing) |
| Temperature | -10~50℃ |
| Maximum Working Height | 3000M(>2000M Need To Derate) |
| Battery Temperature Control Method | Air Cooling |
| Fire Protection System | Aerosol |
Guangzhou Victory Technology Co., Ltd. build partnerships on openness. We invite you for a firsthand Production Site Walkthrough to see our standards in action. This transparency, combined with our high-quality standards and on-call services, ensures we are a partner you can truly rely on.
1. Mandatory polarity verification before power activation.
2. Isolate grid connection prior to DC circuit disconnection.
3. No unauthorized battery disassembly or mechanical penetration.
4. Perform quarterly recharge to sustain ≥30% SOC.
5. Execute visual, wiring, control power and communication checks initially.
Supporting industrial applications, vp energy storage systems offer manufacturing facility backup power, industrial park energy integration, factory process optimization, data center critical load protection, shopping mall service continuity, and hotel energy independence initiatives, providing comprehensive power management solutions.
Q: Can you provide OEM services?
A: Yes, we can provide OEM services for battery size, logo, color, packaging, and anything you need.
Q: Do you have inspection before delivery?
A: Yes. We have specialized OC team to do randome and 100% inspectionbefore delivery.
Q: Do you sell your batteries globally?
A: Yes, we do. VP batteries are sold worldwide and have earned certifications from the International Electrotechnical Commission ( IEC ), CE, ROHS, SGS, and ISO9001.
Q:How about after-sales service?
A:If there are any problems, please inform us and we will provide you with a positive solution.
Q:What informations should i provide to make an order?
A:Usually, we need to know the voltage, the current and the size and quantity.
