Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
MSDS CE IEC UN38.3 ROHS TUV
Model Number:
VP-100-S

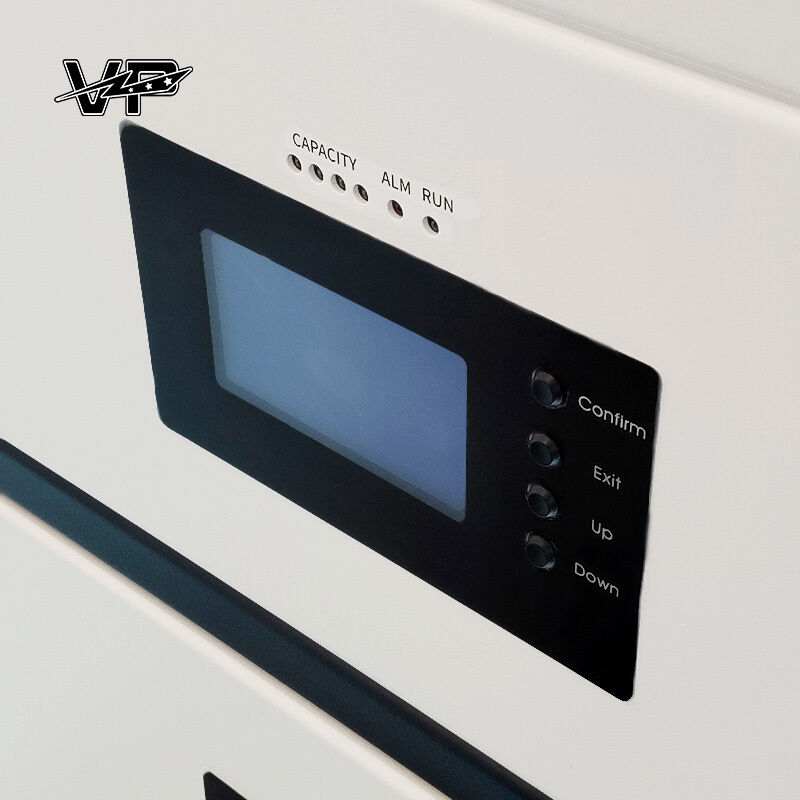

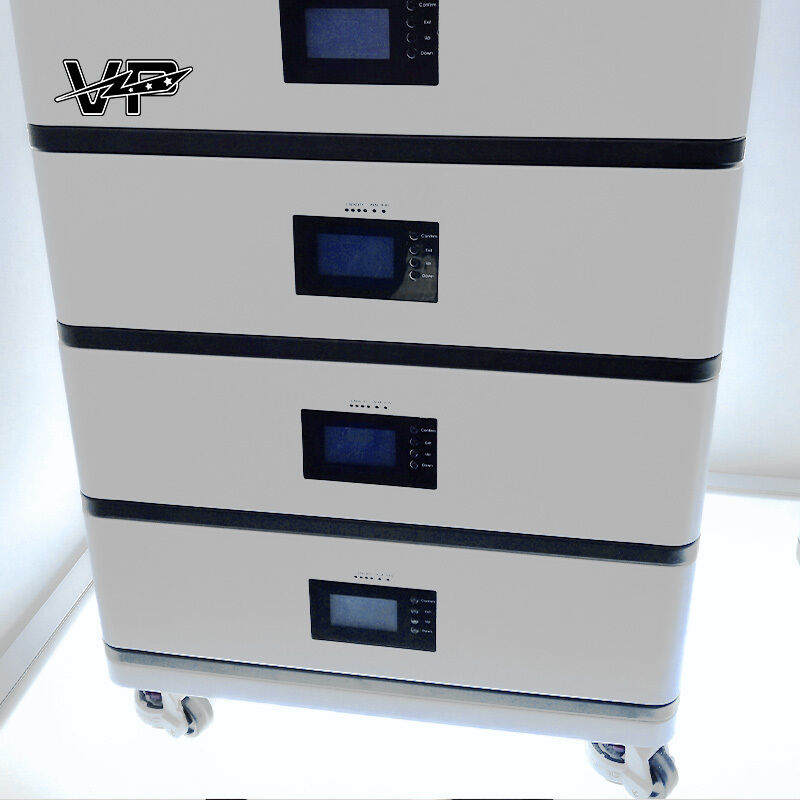

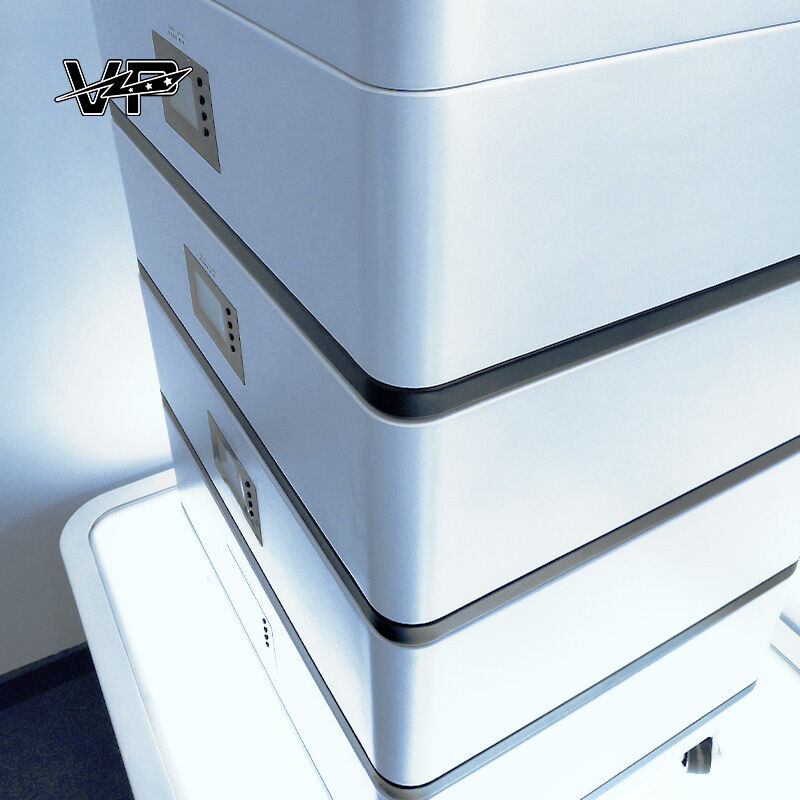

Easy Installation VP LiFePO4 Energy Storage Battery 48V 51.2V 100ah 200ah 300ah 400ah 500ah
Key Features & Benefits for Your Business:
Specifications:
| Parameter | 100-S Model |
|---|---|
| Standard Voltage | 51.2V |
| Rated Capacity | 100AH |
| Operating Voltage | 42V-58.4V |
| Standard Charging Current | 50A/100A |
| Maximum Charge/Discharge Current | 100A |
| Operating Temperature Range | 0~40℃(Charge) -20~40℃(Discharge) |
| Cycle Life | 8000 cycles @25℃ (70% standard capacity at 80% DOD) |
| Communication | CAN & RS485 |
| Protection Class | IP20 |
| Dimensions | 618×450×208.5mm |
| Weight | 48±3kg |
Guangzhou Victory Technology delivers custom energy storage systems built to your specifications. We oversee core manufacturing processes to maintain strict quality control and cost-effective production. Whether you need lithium batteries, dry cell batteries, or complete system solutions, our OEM/ODM services ensure products meet your expectations. Backed by local after-sales engineers and direct business support, we provide a reliable partnership for your clean energy projects.
Description:
Experience ultimate user-friendliness with a convenient one-key power switch that simplifies installation, daily operation, and maintenance. Beyond its user-friendly design, it is equipped with comprehensive protective functions, including over-temperature alarms as well as over-charge, over-discharge, and short-circuit protection, ensuring safe and worry-free management. The 51.2V 100AH stackable system utilizes lithium iron phosphate batteries, whose safety performance is among the most advantageous of all current materials—offering high resistance to fire, reduced heat generation during short circuits, rapid heat dissipation, and a longer operational life.
Applications:
Ideal for small charging stations and small factories, providing flexible, economical power backup and helping to optimize energy expenses. This system enables effective peak-valley shifting to cut electricity costs.
Notices:
1. Prior to operation, calibrate BMS parameters and set thresholds.
2. Use flame-retardant cables with the correct cross-section for the current. Always keep AC and DC wiring separate during installation.
3. Immediately isolate any battery cells that smell of electrolyte or show signs of leakage. Keep them away from fire sources to prevent ignition or explosion.
4. The battery's lifespan may be shortened if usage conditions like charge parameters and ambient temperature are not kept within specified ranges.
5. Avoid installing the system in direct sunlight to prevent accelerated aging of the outer casing.
FAQ
Q: Can you handle large volume orders?
A: Absolutely. At Guangzhou Victory Technology Co., Ltd., we've got a staggering production capacity of billion batteries annually. No matter how large the volume of your order, we're prepared to deliver.
Q:How do we control the quality?
A:We will make samples before mass production and test them. After sample approved, we will begin mass production. Doing 100% inspection during production and then do random inspection before.
Q: How to place an order?
A: First, let us know your requirements or applications. Secondly, we will provide a quotation based on your requirements or our suggestions. Thirdly, the customer confirms the sample and deposits it into the formalorder. Fourthly, we arrange production.
Q:What are the voltage ranges for the custom cells offered by VP Batteries ?
A:VP Batteries offers custom cells in three main voltage ranges: Low Voltage (<12V): Suitable for specialized low-power devices. Medium Voltage(12 - 36V): Ideal for consumer electronics and small appliances. High Voltage (>36V): Designed for electric vehicles and large energy storage system
Q:How to determine the power and power consumption capacity of an electrical appliance?
A:It depends the electronic device. Check it on device instructions.
