Place of Origin:
China
Brand Name:
VP
Certification:
MSDS CE IEC UN38.3
Model Number:
VP-AC-S4
Lithium 409.6V High Voltage Stack Battery 20.4KWH 50AH ESS Solar System
Quick Detail:
· The Safest LiFePo4 Battery No Fire and No Explosions
· Smart BMS System To Optimize
· Enhanced Volumetric Energy Density, High InverterCompatibility

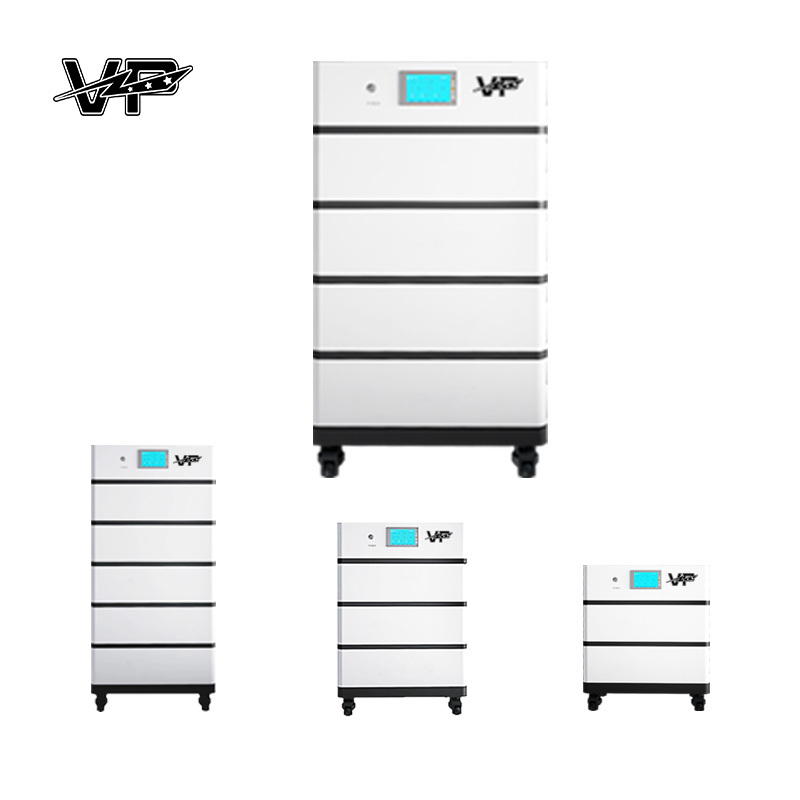

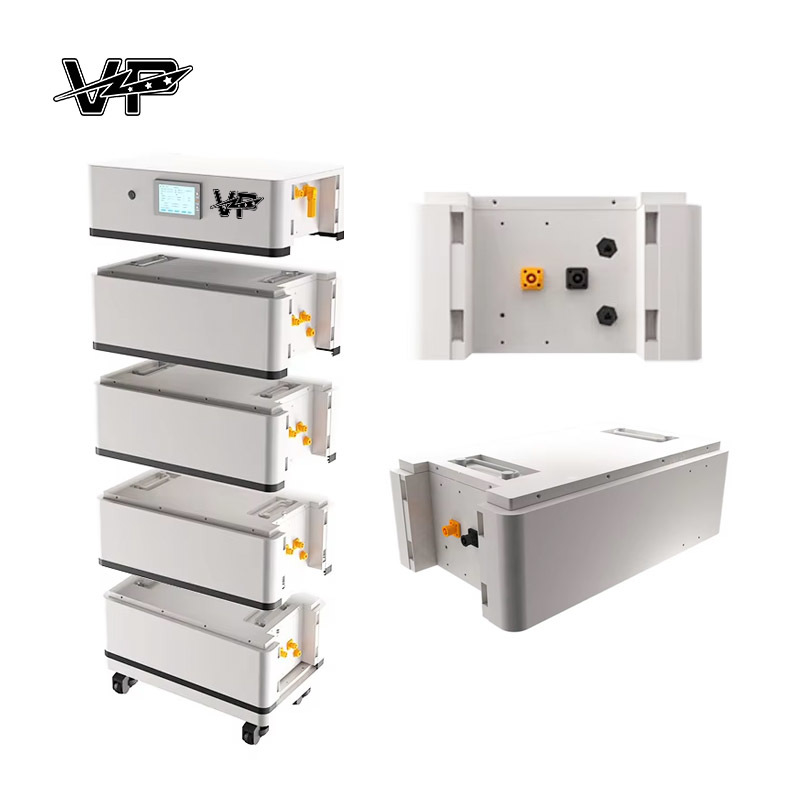

· Modular High-Voltage Stacking
· CAN/ RS485 Bus Standard Connection, Real-Time Monitoring of Voltage and Current
Specifications:
|
PRODUCT PERFORMANCE |
VP-AC-S2 |
VP-AC-S3 |
VP-AC-S4 |
VP-AC-S5 |
|
RATED CAPACITY |
10.24KWH |
15.3KWH |
20.4KWH |
25.6KWH |
|
CELL TYPE |
LITHIUM IRON PHOSPHATE |
|||
|
CELL CONFIGURATION |
2*32S1P |
3*32S1P |
4*32S1P |
5*32S1P |
|
RATED VOLTAGE |
204.8V |
307.2V |
409.6V |
512V |
|
RATED CAPACITY |
50AH |
|||
|
OPERATING VOLTAGE RANGE |
172.8V-233.6V |
259.2V-350.4V |
345.6V-467.2V |
432V-584V |
|
RATED CHARGE AND DISCHARGE CURRENT |
50A |
|||
|
RATED CHARGE AND DISCHARGE POWER |
10.24KW |
15.36KW |
20.48KW |
25.6KW |
|
COMMUNICATION |
CAN/RS485 |
|||
|
CYCLE LIFE |
6000 |
|||
|
OPERATING TEMPERATURE RANGE |
-15-45℃ |
|||
|
RELATIVE HUMIDITY |
5%-65% |
|||
|
WEIGHT |
121±4KG |
169±6KG |
217±8KG |
265±10KG |
|
SIZE(L*W*H) |
630*380*720MM |
630*380*920MM |
630*380*1120MM |
630*380*1320MM |
|
BATTERY BOX PACKAGING WEIGHT |
64KG |
|||
|
MAIN CONTROL BOX PACKAGING WEIGHT |
24.3KG |
|||
Description:
The VP modular design of the stacked lithium Iron Phosphate battery saves space, making it lightweight, easy to install, and expandable to meet your diverse capacity needs, The smart BMS supports comprehensive protection including overcharge protection, over discharge proteetion, overcurrent protection, balance detection, etc, With the built-in off-grid inverter in the stackedbattery, you no longer need to worry about communication protocols, the end users can connectit directly to the home energy storage system.
We Do NoT use recycled battery cells. All VP batteries come with Brand New Grade A LiFePO4 cells.
Notices:
1. Confirm that the battery string voltage matches the inverter input range.
2. Installation height is greater than the highest water level in history + 30cm (use with caution in basements).
3. The battery needs to be kept warm in winter and heat dissipated in summer.
4. Working environment -15°C~45°C (out of range triggers shutdown).
5. Maintain 20-80% SoC for cycle life preservation.
Applications:
Primary Use Cases: Residential energy autonomy; Independent power systems; Priority load backup; Medical facility power; Outdoor operational electrification.
