Place of Origin:
China
Brand Name:
VP
Certification:
MSDS CE IEC UN38.3
Model Number:
VP-AC-S5

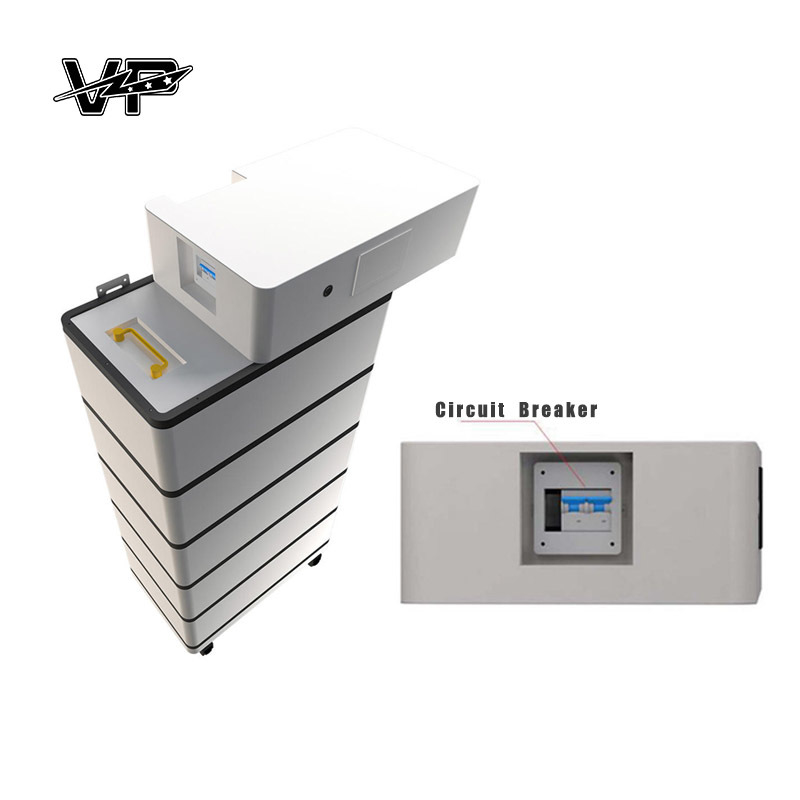

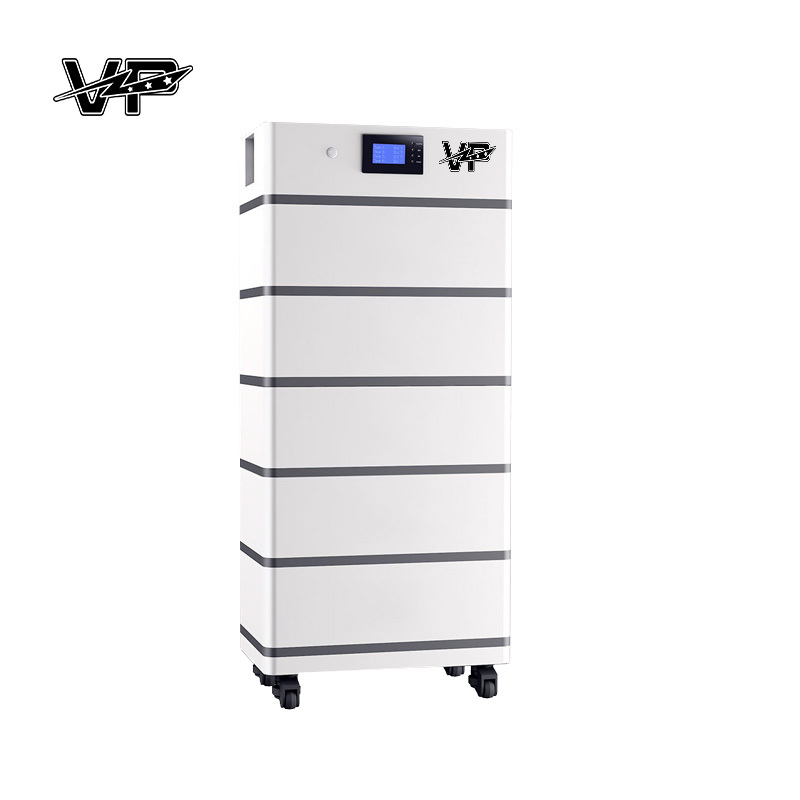

25.6KWH 512V High Voltage ESS Lithium Ion Batteries Stackable Modular
Quick Detail:
· Flexible stacking, modular design, easy expansion
· Lifepo4 50Ah Grade A Battery cell
· Long cycle life, safe and stable
· Display Screen Switching Inverter Protocol
· Built-in aerosol active fire protection
Specifications:
|

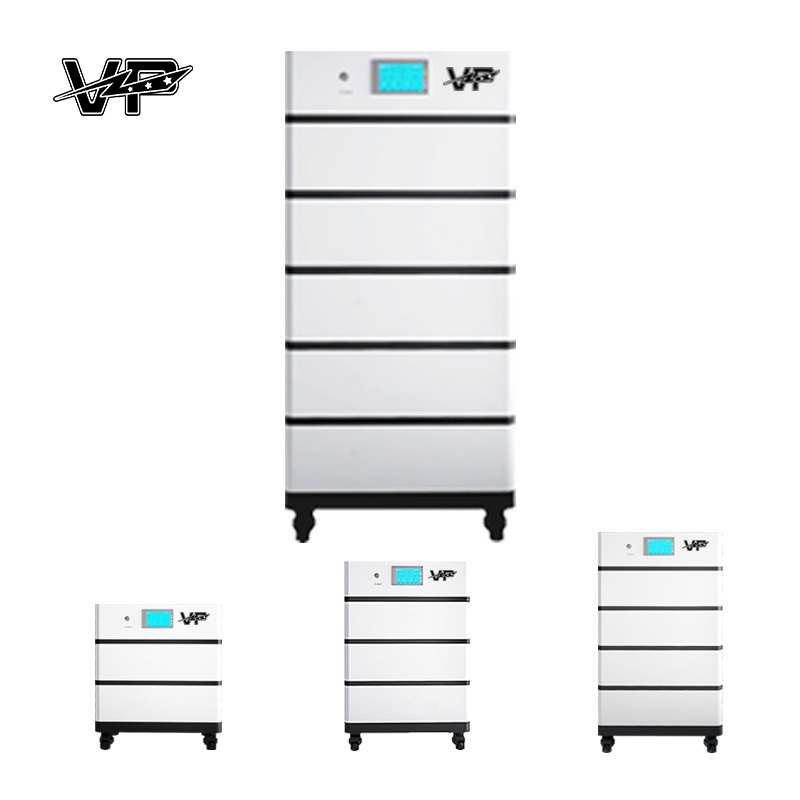

PRODUCT PERFORMANCE |
VP-AC-S2 |
VP-AC-S3 |
VP-AC-S4 |
VP-AC-S5 |
|
RATED CAPACITY |
10.24KWH |
15.3KWH |
20.4KWH |
25.6KWH |
|
CELL TYPE |
LITHIUM IRON PHOSPHATE |
|||
|
CELL CONFIGURATION |
2*32S1P |
3*32S1P |
4*32S1P |
5*32S1P |
|
RATED VOLTAGE |
204.8V |
307.2V |
409.6V |
512V |
|
RATED CAPACITY |
50AH |
|||
|
OPERATING VOLTAGE RANGE |
172.8V-233.6V |
259.2V-350.4V |
345.6V-467.2V |
432V-584V |
|
RATED CHARGE AND DISCHARGE CURRENT |
50A |
|||
|
RATED CHARGE AND DISCHARGE POWER |
10.24KW |
15.36KW |
20.48KW |
25.6KW |
|
COMMUNICATION |
CAN/RS485 |
|||
|
CYCLE LIFE |
6000 |
|||
|
OPERATING TEMPERATURE RANGE |
-15-45℃ |
|||
|
RELATIVE HUMIDITY |
5%-65% |
|||
|
WEIGHT |
121±4KG |
169±6KG |
217±8KG |
265±10KG |
|
SIZE(L*W*H) |
630*380*720MM |
630*380*920MM |
630*380*1120MM |
630*380*1320MM |
|
BATTERY BOX PACKAGING WEIGHT |
64KG |
|||
|
MAIN CONTROL BOX PACKAGING WEIGHT |
24.3KG |
|||
Description:
1) When multiple modules are paralleling connected, module addresses are set automatically.
2) Support for upgrading the battery module from the upper controller through CAN or RS485 communication.
3) The module is non-toxic, non-polluting, and environmentally friendly.
4) Cathode material is made from LiFePO4 with safety performance and long cycle life.
5) Flexible configuration, multiple battery modules can be connected to expand capacity and power.
6) Adopted self-cooling mode rapidly reduced system entire noise.
Notices:
1. Calibrate BMS parameters before use, turn on the energy storage backup mode and set the charge and discharge thresholds.
2. Working environment -15°C~45°C (out of range triggers shutdown).
3. Installed away from flammable materials>1m, and the top reserved heat dissipation layer height>80cm.
4. Avoid direct sunlight to accelerate the aging of the shell.
5. Confirm that the battery string voltage matches the inverter input range.
Applications:
It can be separately connected to different loads, such as electrical appliances, lighting fixtures, power tools, air conditioners, etc., and is capable of supplying power to these loads simultaneously.
