Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
CE(IEC62109-1) EB61000 C2 UN38.3 MSDS ISO RoHS
Model Number:
BES6200-248-5KWH
Why Choose VP Batteries:
√ Strict quality control: Every product undergoes rigorous testing and inspection.
√ Stable production capacity: Ensures uninterrupted supply even during peak seasons.
√ Highly competitive factory direct prices: Providing high-quality products at source prices, balancing quality and value.
√ Fast delivery: Optimize logistics and streamline order processing.
√ Extensive global export experience: ensuring smooth customs clearance and compliance with local standards and requirements.
√ Professional, comprehensive technical support: Answering questions anytime, providing installation guidance and after-sales service.
√ Flexible OEM solutions: Meeting unique specification requirements, supporting customized services for design, packaging, and functionality.
| Product Performance | BES6200 - 248 - 5KWH |
|---|---|
| Load Power | 6200W |
| Total Energy(Wh) | 5120WH |
| Number of Parallel | Up to 12 in parallel (Parallel up to 380VAC output) |
| Solar Input | |
| Maximum PV Open-circuit Voltage | 500VDC |
| PV Working Voltage range | 60 - 500VDC |
| MPPT Voltage Range | 60 - 450VDC |
| Maximum PV Input Current(A) | 27 |
| Maximum PV Input Power(W) | 6500W |
| Maximum PV Charging Current(A) | 100A |
| Number of MPPT interface | 2 way |
| AC Input | |
| Rated input Voltage | 230VAC |
| Input Voltage Range | UPS Mains Mode: 170 - 280VAC ± 2% / APL Generator Mode: 90 - 280V ± 2% |
| Frequency | 50Hz/60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage(VAC) | 230VAC (Parallel output up to 380VAC) |
| Rated Output Power(W) | 6200W |
| Peak Power(W) | 12400W |
| Output Frequency Range(Hz) | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Maximum Efficiency | >93% |
| Switch Time (Bypass And Inverter) | 10ms (Typical Value) |
| Maximum Bypass Overload Current | 40A |
| General Parameters | |
| Communication Protocol | RS232 Protocol |
| IP level | IP65 |
| Certificate | CE(IEC62109-1) |
| EMC Certification Level | EB61000, C2 |
| Operating Temperature(°C) | -10 - 55°C |
| Storage Temperature(°C) | -25 - 60°C |
| Humidity Range | 5% to 95% (Conformal Coating Protection) |
| Dimension(WDH, mm) | 565*200*1045 |
| Weight(kg) | 70.4KG |
| Optional Configuration | WIFI module |
| Standard Configuration | AC cable(1m), PV input cable(1m) |
Basic Info.
Guangzhou Victory Technology's batteries are fully certified with UL, CE, CB, RoHS, UN38.3 and more. With an annual production capacity in the billions, VP exemplifies readiness to meet demands of any scale. Our high productive capacity ensures stable, timely supply for global partners.

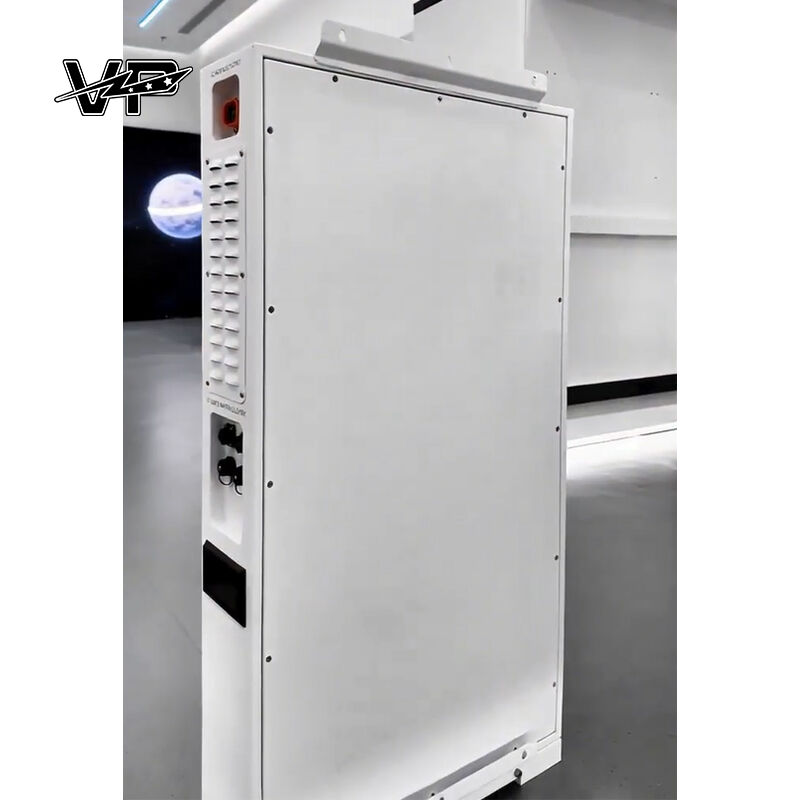

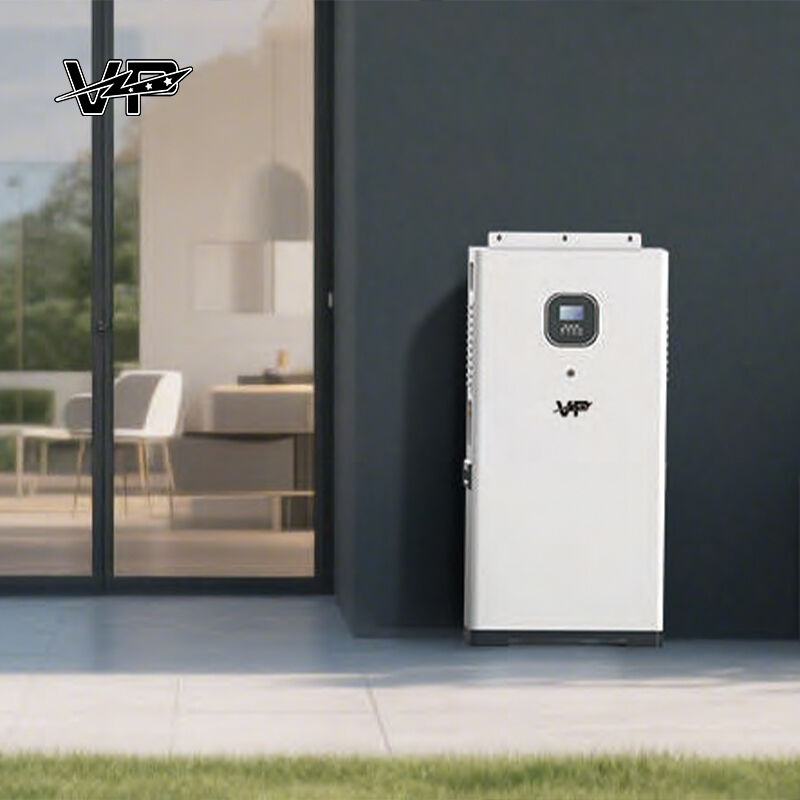

This household off-grid energy storage system integrates a photovoltaic inverter with lithium iron phosphate (LiFePO₄) batteries, ensuring continuous backup power during grid failures or instability. Available in 5kWh, 10kWh, and 16kWh energy capacities, it supports up to 12 units in parallel (BES6200 series) or 6 units (BES11000 series) with AC output up to 380VAC. The system features 2 MPPT trackers with 500VDC max PV input and 27A max current, enabling efficient solar charging. Pure sine wave output (230VAC, 6200Wrated) delivers clean power for sensitive loads, with peak capacity up to 12400W. Comprehensive protections include over-voltage, over-current, over-temperature, and short circuit. IP65-rated enclosure ensures outdoor durability, while optional WiFi module enables APP remote monitoring. Certified to CE (IEC62109-1) and EMC Class C2, it operates reliably from -10°C to 55°C with over 93% efficiency.
Ideal for residential backup during blackouts, solar self-consumption with TOU arbitrage, semi-outdoor installations (IP65), remote cabins, farms, telecom shelters, industrial sites, and off-grid workshops. Supports 12-unit parallel scaling, 2 MPPT trackers, and 380VAC output for diverse power needs.
Q: What is the rated output power of the BES6200 series?
A: The BES6200 series has a rated output power of 6200W, with a peak power of 12400W.
Q: What type of battery is used?
A: The system uses Lithium Iron Phosphate (LiFePO₄) batteries, which are safer and more thermally stable.
Q: What is the bypass-to-inverter switch time?
A: The typical switch time is 10ms, ensuring seamless power transition during grid failures.
Q: What humidity range can the system withstand?
A: The system operates in 5% to 95% humidity with conformal coating protection for enhanced durability.
Q:What's your advantage compared with other suppliers?
A:High quality batteries: Our batteries are in enough capacity, and lower in RI, Before shipment, we will inspect the products and ensure the quality which are well approved by our clients.
