Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
CE(IEC62109-1) EB61000 C2 UN38.3 MSDS ISO RoHS
Model Number:

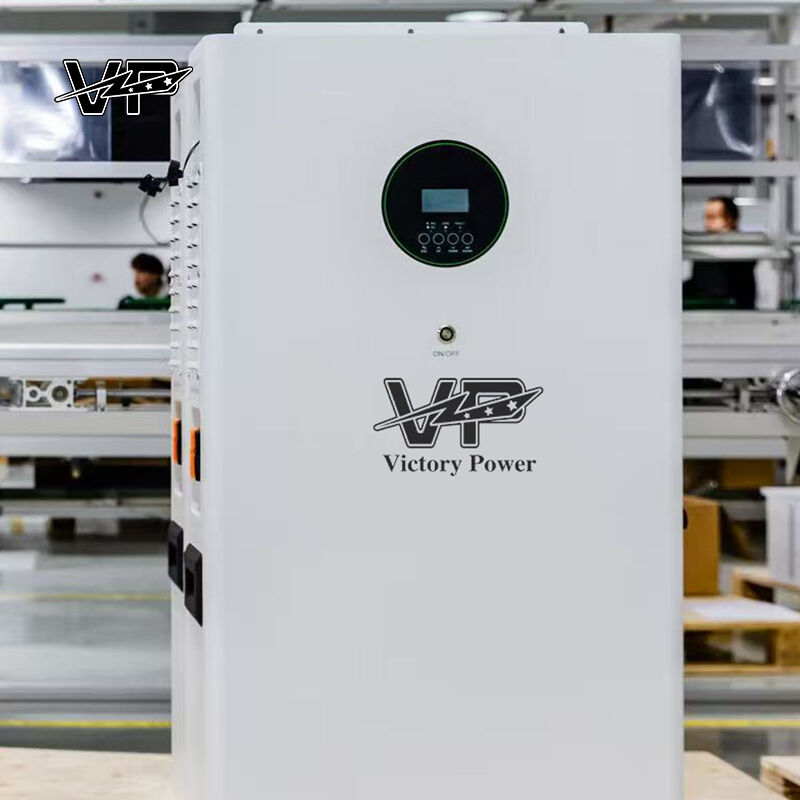

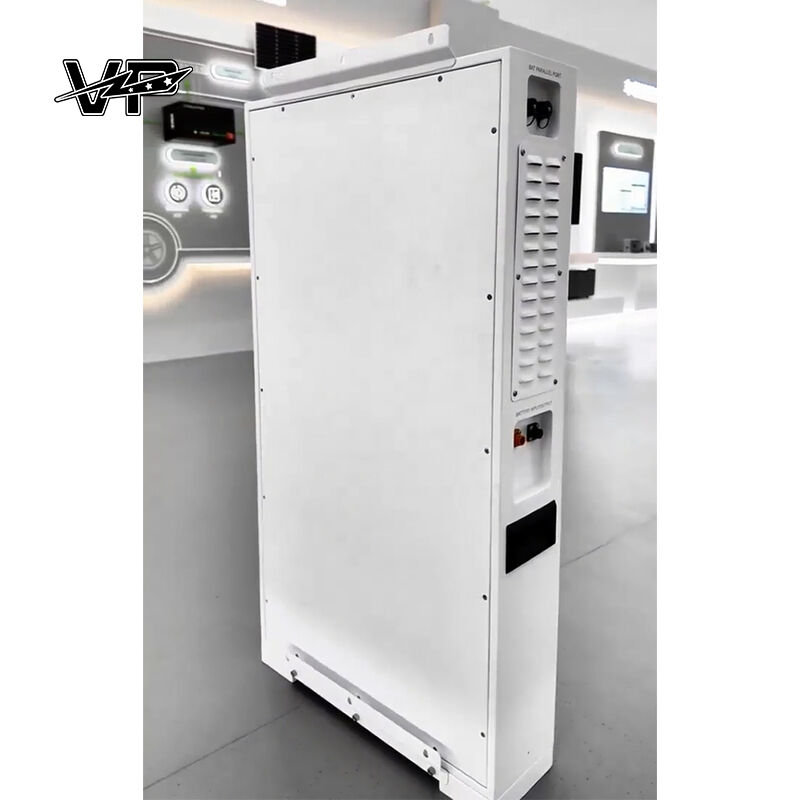

BES6200-248-10KWH
| Product Performance | BES6200 - 248 - 10KWH |
|---|---|
| Load Power | 6200W |
| Total Energy(Wh) | 10240WH |
| Number of Parallel | Up to 12 in parallel (Parallel up to 380VAC output) |
| Solar Input | |
| Maximum PV Open-circuit Voltage | 500VDC |
| PV Working Voltage range | 60 - 500VDC |
| MPPT Voltage Range | 60 - 450VDC |
| Maximum PV Input Current(A) | 27 |
| Maximum PV Input Power(W) | 6500W |
| Maximum PV Charging Current(A) | 100A |
| Number of MPPT interface | 2 way |
| AC Input | |
| Rated input Voltage | 230VAC |
| Input Voltage Range | UPS Mains Mode: 170 - 280VAC ± 2% / APL Generator Mode: 90 - 280V ± 2% |
| Frequency | 50Hz/60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage(VAC) | 230VAC (Parallel output up to 380VAC) |
| Rated Output Power(W) | 6200W |
| Peak Power(W) | 12400W |
| Output Frequency Range(Hz) | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Maximum Efficiency | >93% |
| Switch Time (Bypass And Inverter) | 10ms (Typical Value) |
| Maximum Bypass Overload Current | 40A |
| General Parameters | |
| Communication Protocol | RS232 Protocol |
| IP level | IP65 |
| Certificate | CE(IEC62109-1) |
| EMC Certification Level | EB61000, C2 |
| Operating Temperature(°C) | -10 - 55°C |
| Storage Temperature(°C) | -25 - 60°C |
| Humidity Range | 5% to 95% (Conformal Coating Protection) |
| Dimension(WDH, mm) | 560*200*1160 |
| Weight(kg) | 111KG |
| Optional Configuration | WIFI module |
| Standard Configuration | AC cable(1m), PV input cable(1m) |
Basic Info.
Guaranteed safe, reliable, and consistent power for electronics, meters, and backup systems. Guangzhou Victory Technology – certified power solutions for Southeast Asia, Africa, and beyond. Trust every VP batteries.
Choose Victory Power for uncompromised quality. Each battery undergoes strict multi-point testing and holds global certifications (UL, CE, RoHS, UN38.3). We ensure stable supply even during peak seasons. Your orders ship on time, every time.
With pure sine wave output (230VAC, 6200W rated, 12400W peak) and <10ms bypass switch time, this system provides seamless, invisible backup power to keep essential circuits, large refrigerators, and home networks online during severe weather and grid failures. Parallel support up to 12 units allows scalable capacity for larger households.
The system is equipped with dual MPPT trackers (voltage range 60–450VDC, maximum input current 27A, maximum photovoltaic power 6500W) and a mains charging efficiency of over 95%, making it ideal for homes with solar panels. By storing daytime photovoltaic energy and taking advantage of peak-valley electricity price differences, it can significantly reduce electricity bills. Available in 5kWh, 10kWh, and 16kWh energy options.

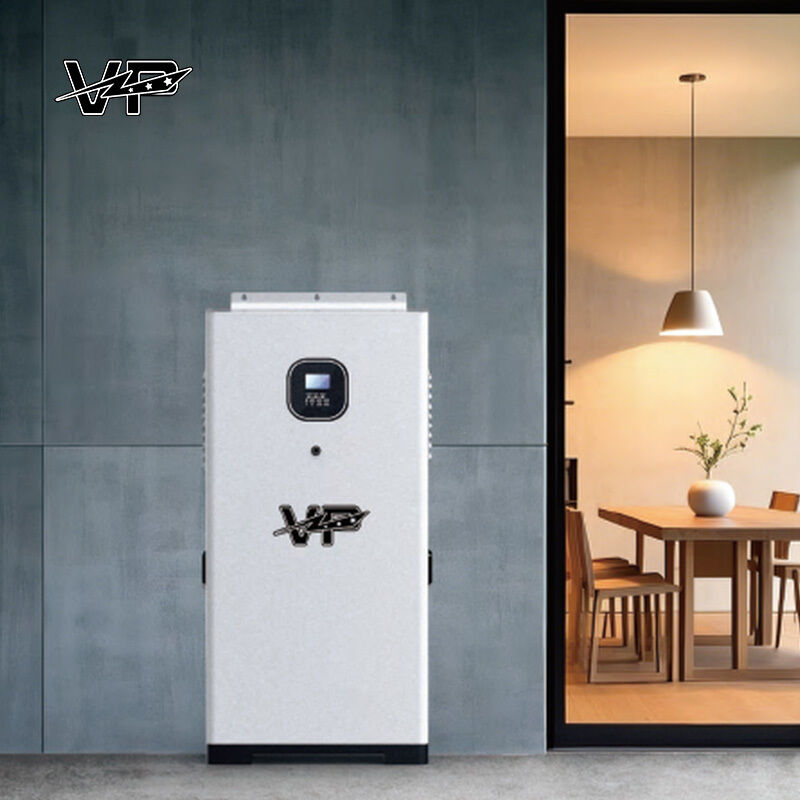

Perfect for homes with solar panels (maximize self-use), grid-failure emergency backup (<10ms switch), exterior wall mounting (IP65, -10°C~55°C), and harsh-environment industrial applications. Scalable from 5kWh to 16kWh with parallel expansion up to 12 units for growing energy demands.
Q: What is the output voltage waveform?
A: The system outputs a pure sine wave at 230VAC, ensuring clean and stable power for sensitive electronics.
Q: Can multiple units be connected in parallel?
A: Yes. The BES6200 series supports up to 12 units in parallel, while the BES11000 series supports up to 6 units. Parallel output can reach up to 380VAC.
Q: What is the IP rating?
A: The system has an IP65 rating, providing complete dust-tight protection and resistance to low-pressure water jets, making it suitable for outdoor and semi-outdoor installations.
Q: What protection functions does the built-in BMS provide?
A: Our batteries include an industrial-grade Smart BMS that monitors cell status in real-time. It provides 6 core protections: Over-Charge Protection, Over-Discharge Protection, Over-Current Protection, Short-Circuit Protection, Temperature Protection, Auto-Balancing.
Q: Why should you buy from us not from other suppliers?
A: Guangzhou Victory Technology Co., Ltd have extensive experience in battery manufacturing, specializing on the research, development, production, and sales of alkaline batteries, carbon batteries, energy storage battery systems, lithium-ion rechargeable batteries, and related charging equipment. We have established deep partnerships with numerous large enterprises.
Ready to Specify or Private Label? Contact our B2B sales team for:
