Place of Origin:
China
Brand Name:
VP / No Logo / Customize brand / OEM / ODM
Certification:
CE(IEC62109-1) EB61000 C2 UN38.3 MSDS ISO RoHS
Model Number:
BES11000-248-10KWH
One-stop battery manufacturer: Alkaline, Zinc Carbon, NiMH, Button cell, Lithium, Li-polymer, rechargeable packs & ESS. Annual capacity in billions – ready for any order size. Stable, affordable quality with timely supply. Guangzhou Victory Technology – Providing you with comprehensive battery partner support, from product development to market sales. We cordially invite you to visit our factory.
| Product Performance | BES11000-248-10KWH |
|---|---|
| Load Power | 1100W |
| Total Energy(Wh) | 10240WH |
| Number of Parallel | Up to 6 in parallel (Parallel up to 380VAC output) |
| Solar Input | |
| Maximum PV Open-circuit Voltage | 500VDC |

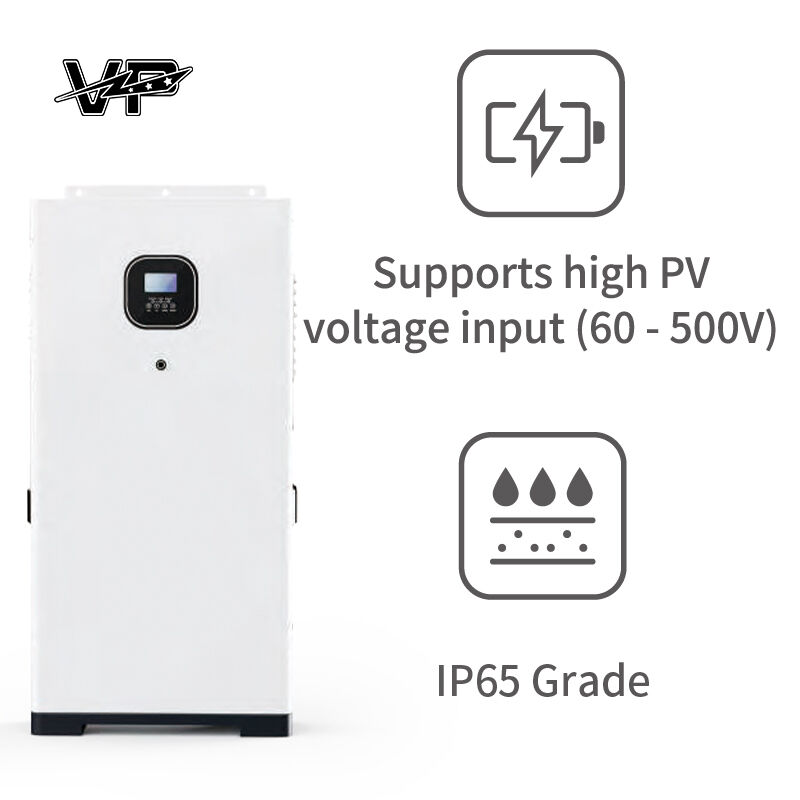

| PV Working Voltage range | 60 - 500VDC |
| MPPT Voltage Range | 60 - 450VDC |
| Maximum PV Input Current(A) | 18*2 |
| Maximum PV Input Power(W) | 5500W*2 |
| Maximum PV Charging Current(A) | 160A |
| Number of MPPT interface | 2 way |
| AC Input | |
| Rated input Voltage | 230VAC |
| Input Voltage Range | UPS Mains Mode: 170 - 280VAC ± 2% / APL Generator Mode: 90 - 280V ± 2% |
| Frequency | 50Hz/60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage(VAC) | 230VAC (Parallel output up to 380VAC) |
| Rated Output Power(W) | 11000W |
| Peak Power(W) | 22000W |
| Output Frequency Range(Hz) | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Maximum Efficiency | >93% |
| Switch Time (Bypass And Inverter) | 10ms (Typical Value) |
| Maximum Bypass Overload Current | 40A |
| General Parameters | |
| Communication Protocol | RS232 Protocol |
| IP level | IP65 |
| Certificate | CE(IEC62109-1) |
| EMC Certification Level | EB61000, C2 |
| Operating Temperature(°C) | -10 - 55°C |
| Storage Temperature(°C) | -25 - 60°C |
| Humidity Range | 5% to 95% (Conformal Coating Protection) |
| Dimension(WDH, mm) | 635*200*1200 |
| Weight(kg) | 120KG |
| Optional Configuration | WIFI module |
| Standard Configuration | AC cable(1m), PV input cable(1m) |
Basic Info.

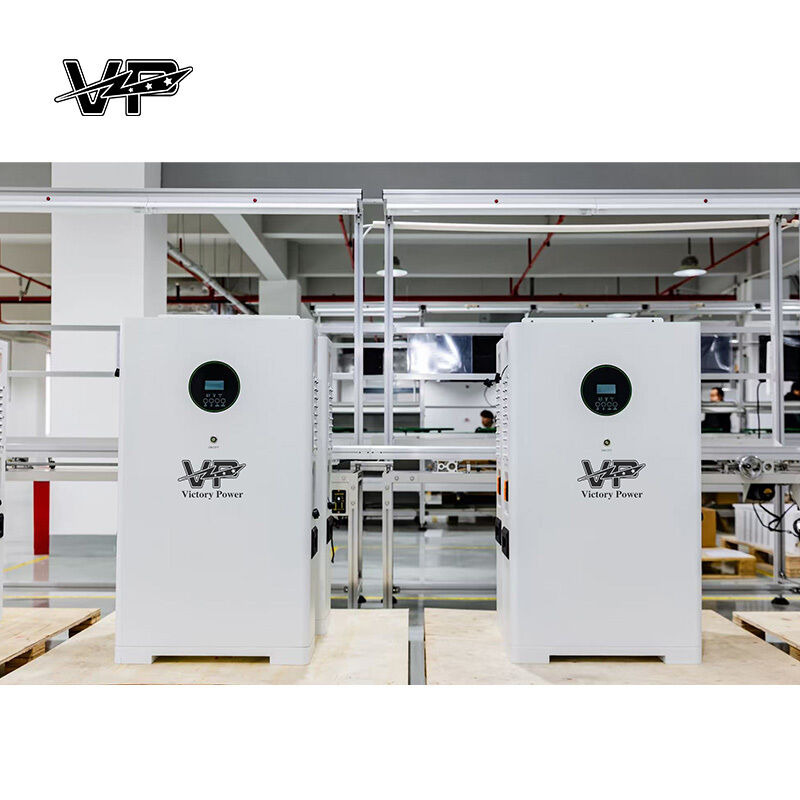

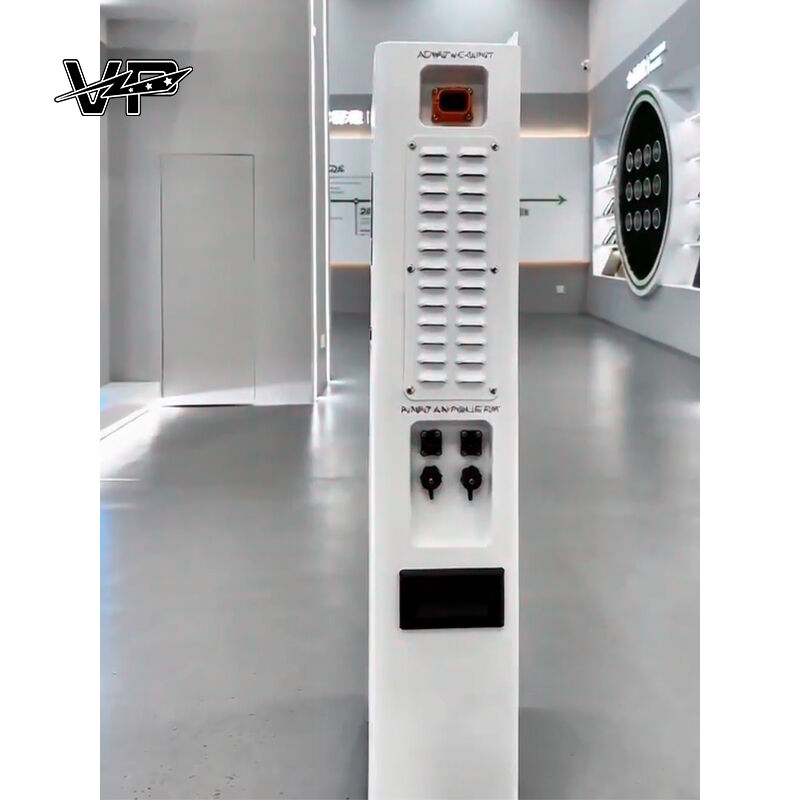

This off-grid energy storage system integrates a photovoltaic inverter with LiFePO₄ batteries, available in 5kWh, 10kWh, and 16kWh capacities. The IP65-rated enclosure with conformal coating protection and wide -10°C to 55°C operating range ensures safe and durable exterior wall installations without performance degradation. Equipped with 2 MPPT trackers (500VDC max), it supports up to 6 units in parallel with AC output up to 380VAC. Pure sine wave output (230VAC, 11000W rated, 22000W peak) delivers clean backup power with <10ms switch time. The mobile APP enables real-time monitoring, intelligent alarms, and remote management. Full-life-cycle management with early-warning strategies reduces usage barriers. Comprehensive protections (over-voltage, over-current, over-temperature, short circuit) and integrated BMS ensure intelligent maintenance and worry-free operation from installation to use. Certified CE(IEC62109-1) and EMC Class C2.
Factory-direct pricing means maximum profit margins for your business. We eliminate middlemen and optimize our supply chain to offer affordable rates without sacrificing quality. Combined with fast delivery and efficient logistics, we help you stock your market quickly and stay ahead of competitors.
Suitable for residential energy independence, commercial peak shaving, remote off-grid sites, generator-replacement scenarios, and critical infrastructure backup. Dual MPPT tracks shaded arrays, IP65 permits outdoor placement, APP enables remote monitoring, and BMS ensures safe 24/7 operation.
Q: What is the rated output power of the BES11000 series?
A: The BES11000 series has a rated output power of 11000W, with a peak power of 22000W.
Q: What is the PV working voltage range?
A: The PV working voltage range is 60 to 500VDC, with the MPPT voltage range between 60 and 450VDC.
Q: Does the system support remote monitoring?
A: Yes, an optional WiFi module enables APP-based remote monitoring for real-time data display, intelligent alarms, and remote management.
Q: Is installation and maintenance complex?
A: No. The system is factory-integrated and pre-commissioned for rapid field deployment. Its modular design simplifies maintenance, reduces downtime, and lowers overall operating costs.
Q:What informations should i provide to make an order?
A:Usually, we need to know the voltage, the current and the size and quantity.
