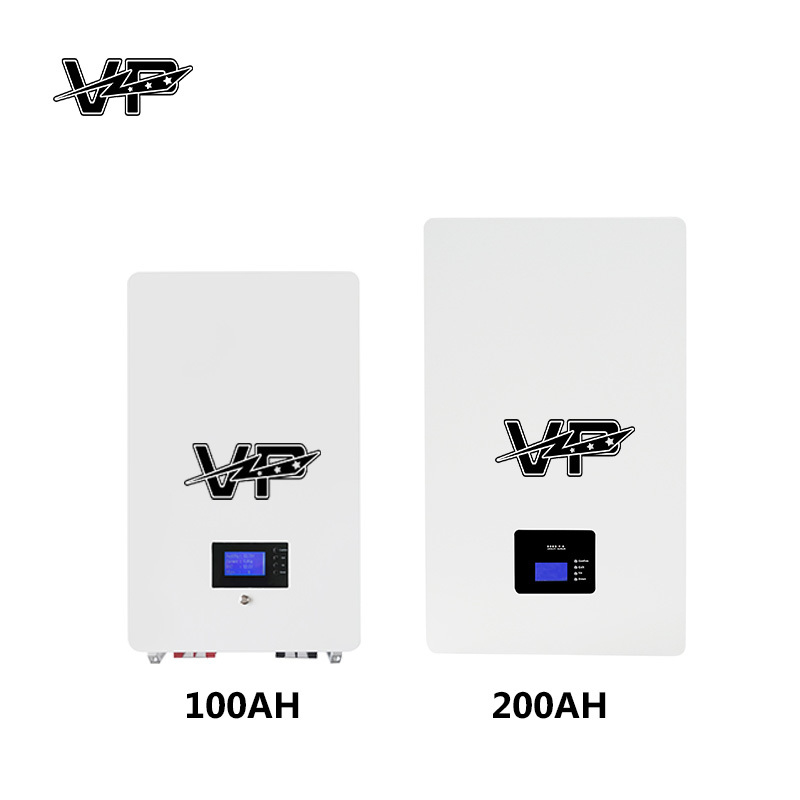

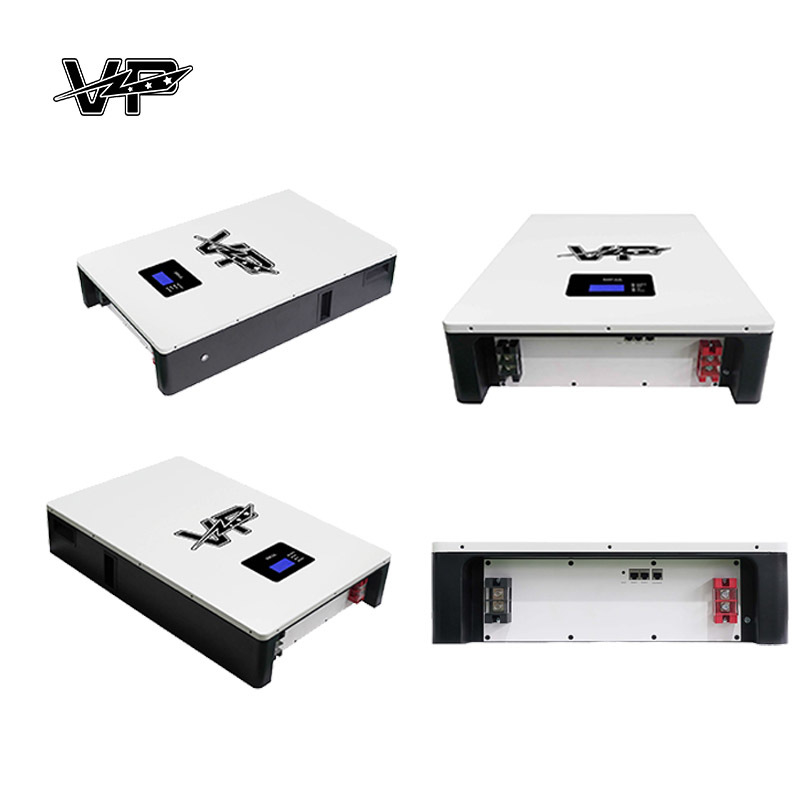

Wall Mounted LiFePO4 Lithium Battery 51.2V 200AH Home Energy Storage System
Product Specifications
| Product Name |
LiFePO4 Energy Storage System |
| BMS |
Battery Management System |
| Cycle Life |
>6000 Times |
| Waterproof Grade |
IP20 |
| Communication |
CAN & RS485 |
| Battery Cell |
Lithium Iron Phosphate |
Key Features
- High quality LiFePO4 battery technology
- Intelligent Battery Management System (BMS)
- High cycle count of 6,000 cycles
- Maximum 100A charge and discharge current
- Outstanding environmental adaptability
Technical Specifications
| Product Performance |
NILE-100 |
NILE-200 |
| Standard Voltage |
51.2V |
51.2V |
| Rated Capacity |
100AH |
200AH |
| Operating Voltage |
42V-584V |
42V-584V |
| Standard Charging Current |
50A |
100A |
| Maximum Charge / Discharge Current |
100A |
100A |
| Operating Temperating Range |
0~40℃(Charge) -20~40℃(Discharge) |
| Storage Temperature |
-10℃-35℃(1Month) 25±2℃(3Month) 65%±20%RH |
| Cycle Life |
6000 Cycles @25℃ 50A Charge And Discharge Current 70% Standard Capacity 80%DOD |
| Communication |
CAN & RS485 |
| Waterproof Grade |
IP20 |
IP20 |
| Humidity Range |
5~80% |
5~80% |
| Net Size |
368*600*150MM |
520*830*159MM |
| Carton Packaging |
435*695*250MM |
590*900*260MM |
| Pallet |
1 *1.2*1.5M |
1 *1.2M |
| Percard Board |
28BOX |
14BOX |
| 20-Foot Container |
280BOX |
144BOX |
| 40-Foot Container |
560BOX |
288BOX |
| Net Weight |
46±3KG |
98±3KG |
| Packing Weight |
51KG |
101KG |
Product Description
Featuring advanced LiFePO₄ battery technology with 6,000-cycle durability. This energy storage system incorporates RS485 / CAN communication protocols and smart BMS for real-time monitoring of voltage/temperature anomalies and circuit protection. Engineered for photovoltaic applications, it supports seamless grid/off-grid transition while maintaining operational stability for efficient and sustainable long-term power management.
VP batteries are CE, ROHS, TUV, ISO, FC approved and MSDS, UN38.3 for lithium battery, meeting various certification requirements for different countries. We consistently implement stringent quality control to ensure superior product quality.
Installation & Safety Notices
- Use flame-retardant cables for battery connection, with clear positive and negative pole markings to prevent short-circuit hazards.
- Check that all interface screws are tightened and the communication line (RS485/CAN) is connected correctly.
- Extreme temperatures (<-20℃ or >40℃) will significantly shorten the life of lithium batteries.
- Calibrate BMS parameters before use, turn on the energy storage backup mode and set the charge and discharge thresholds.
- System enclosure requires reliable grounding; lightning arresters must connect to a dedicated earth grid.
Applications
Designed for household energy storage, industrial energy storage, mobile energy systems, photovoltaic energy storage, wind power generation, UPS power supply, communication base stations, solar street lamps, RV energy systems, and more.
Guangzhou Victory Technology Co., Ltd. specializes in industrial and commercial energy storage systems, dry cell batteries, lithium batteries, empowering businesses to achieve sustainability goals through reliable, innovative and efficient energy solutions. We support our customers' green energy transitions with a commitment to quality and collaboration.
· We have a 5000 square meter production base, a mature production team, and 20+ high-precision battery production lines.
· We provide OEM customization services and have become the trusted choice of many customers.
· The battery has passed formal quality certification and obtained various certificates such as lSO9001, SGS and CE for explosion and leakage prevention.
· Having an experienced professional production team and technical personnel.
· Our customer service provides 24-hour service, 2-hour quick response, full inspection of outgoing goods, door-to-door logistics delivery, fast delivery speed, and rea-time tracking to ensure the safety of goods.
Frequently Asked Questions
Do you support OEM/ODM?
Of course, we can do customized services for our partners.
Is it OK to print my logo on the product?
Yes. Please inform us formally before our production.
Why should you choose us?
Our products meet global safety and quality standards, certified by KC, CB, CE, PSE, FCC, RoHS, and UN38.3, ensuring top-tier reliability and customer satisfaction worldwide.
What can I buy from here?
We specialize in products for industries such as automotive, electric vehicles, and tourism, offering a range of dry batteries, lithium-ion batteries, home energy storage systems, commercial & industrial energy storage systems and emergency start equipment.
Can we visit your factory?
Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
If you have any other questions, please feel free to contact us. Welcome your inquiry.
